Home > Products > API hydraulic power tong > Hydraulic Tubing Power Tong XQ140/12YA
Hydraulic Tubing Power Tong XQ140/12YA
- Tianjin or Shanghai Port
- T/T Credit Card
You May Like
Product Details
| Type | Hydraulic Power Units | Model Number | XQ140/12YA | |
| Brand Name | BLT | Place of Origin | Henan, China |
Product Description
Specifications
1.Name:Hydraulic tubing power tong XQ140/12YA2.Size:XQ140/12YA, XQ114/6YB, XQ89/3YC
3.Pipe size range:3 7/2"-6 1/8"

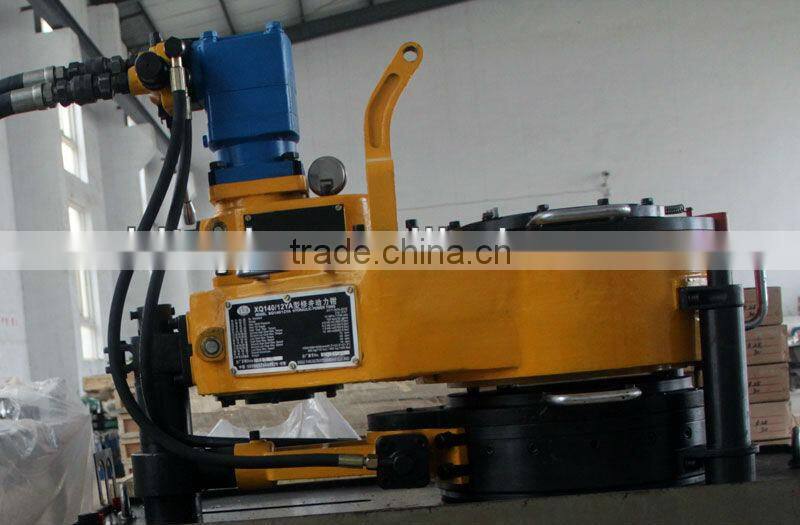

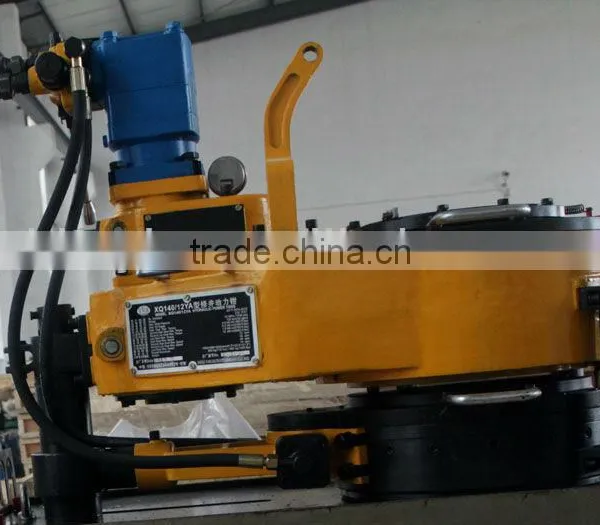

Hydraulic tubing power tong XQ140/12YA
Detailed description
Hydraulic Tubing Power Tong is used for quick make-up or break-out in well service operations. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp.
Product performance:
features | |
1.clamp the tubing use corresponding dies, jaw set or die seat. | |
2.torque control valve may be equiped according to customer’s request. | |
3.choose and buy lengthening guide pole assembly, the backup tong can clamp the tubing body | |
4.torque control system may be equiped according to customer’s request. | |
Model | XQ140/12YA |
Pipe size range of master tong | φ73-140 27/8”-51/2” |
Pipe size range of backup tong | φ89-156 37/2”-61/8 |
High gear rated torque | 2600 N.m 1918 ft-lbs |
Low gear rated torque | 12000N.m 8851 ft-lbs |
Hige gear rated speed | 72r/min |
Low gear rated speed | 14r/min |
Rated operation pressure | 12Mpa 1470psi |
Max. Flow | 120L/min 32gpm |
Dimension:L×W×H | 1024×582×539 40.3” ×22.9” ×21.2” |
Weight(including backup tong) | 480kg 1057 lbs |
