XYQ114/6B Hydraulic Tubing Power Tong

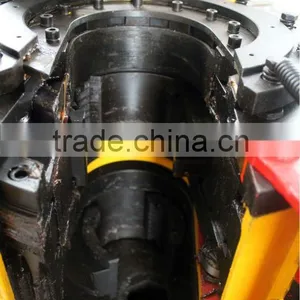

XYQ114/6B Hydraulic Tubing Power Tong thumbnail-1
XYQ114/6B Hydraulic Tubing Power Tong photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Hydraulic Power Units
Model Number:
XQ114/6YB
Brand Name:
BLT
Contact Supplier Request Quote Chat Now
Puyang Bao Litong Petroleum Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hydraulic Power Units
Model Number XQ114/6YB
Brand Name BLT
Place of Origin Henan, China

Specifications

XYQ114/6YB Hydraulic tubing power tong
1.Type:XQ89/3YC, XQ114/6YB
2.Well service operations
3.Pipe range size: 2 3/8" ~3 1/2"

XYQ114/6B Hydraulic tubing power tong



Deatailed Description

         The company mainly specialized in couplings, hydraulic power tubing tong, sucker rod tong and accesories. The hydraulic power tubing tong specifications are  XQ89/3YC, XQ114/6YB, XQ140/12YA, sucker rod tong specifications are XQ28/1.8Y and XQ28/2.6Y. The following is the information of hydraulic power tongs.



 Features:



1.Size: :XQ89/3YC, XQ114/6YB, XQ140/12YA

2.MOQ:1 Set

3.Usage: Used for quick make-up and break-out in well service operations.

4.Clamp the tuing use corresponding dies, jaw set or die seat.

5.Torque control valve may be equipped according to customers' request.

6.Torque control system may be equipped according to customers' request.



Technics Parameters



Model

XQ89/3YC

XQ114/6YB

XQ140/12YA

Pipe size range of master tong

Φ60-89

23/8”-31/2”

Φ73-89

27/8”-31/2”

Φ73-140

27/8”-51/2”

Pipe size range of backup tong

Φ60-114

23/8”-41/2

Φ89-114.5

31/2”-51/8

Φ89-156

31/2”-61/8”

High gear rated torque

1100 N.m

811ft-lbs

1500 N.m

1106ft-lbs

2600 N.m

1918ft-lbs

Low gear rated torque

3000 N.m

2213 ft-lbs

6000 N.m

4425ft-lbs

12000 N.m

8851 ft-lbs

Hige gear rated speed

90 r/min

85 r/min

72 r/min

Low gear rated speed

30 r/min

20 r/min

14 r/min

Rated operation pressure

10Mpa

1450psi

11Mpa

1595psi

12Mpa

1740psi

Max. Flow

80L/min

21gpm

100L/min

26gpm

120L/min

32gpm

Dimension:L×W×H

650×430×550

25.6” ×16.9” ×21.7”

750×500×600

29.5” ×16.7” ×23.6”

1024×582×539

40.3” ×22.9” ×21.2”

Weight(including backup tong)

158kg

348 lbs

220kg

485 lbs

480kg

1057 lbs





Pictures

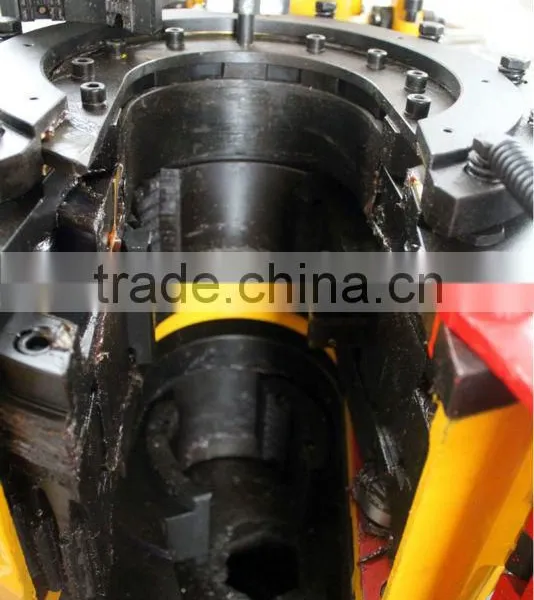

XYQ114/6B Hydraulic tubing power tongXYQ114/6B Hydraulic tubing power tong



XYQ114/6B Hydraulic tubing power tong
