Help CenterHydraulic Tubing Power Tong XQ114/6YB
Related Products
Specifications
1.Name:Hydraulic tubing power tong2.Type:XQ114/6YB
3.Purpose:used for quick make-up/break-out in well service operations
Detailed product description

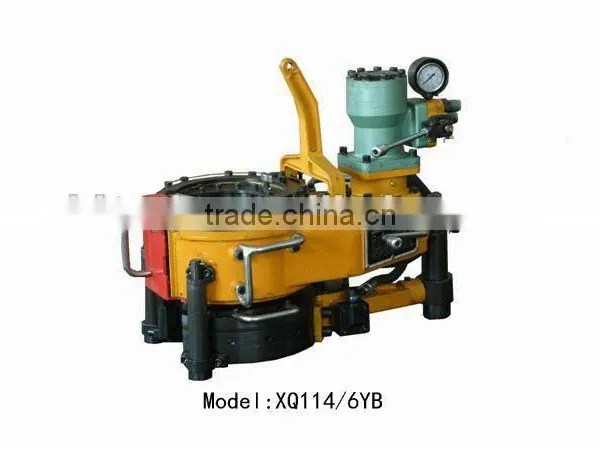

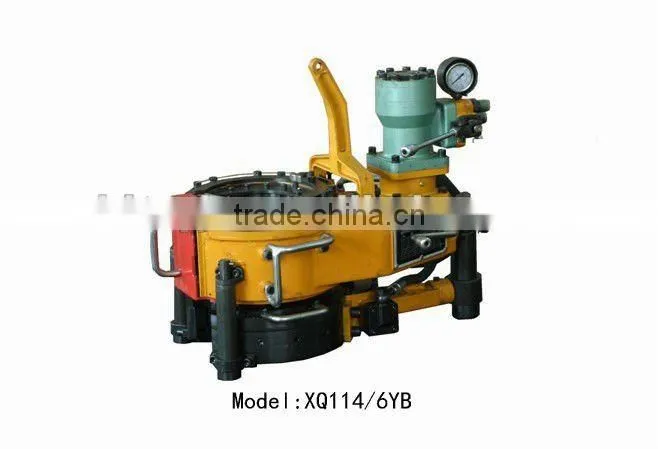

XQ114/6YB hydraulic power clamp is used for quick make-up/break-out in well service operations. It is mainly made up of two parts, master tong and backup tong. The pipe size range of master tong is Φ73-114 27/8”-41/2”; the pipe size range of backup tong is Φ89-141.5 31/2”-51/8.
Technical Parameters and Features
Model |
XQ89/3YC |
XQ114/6YB |
XQ140/12YA |
Pipe size range of master tong |
Φ60-89 23/8”-31/2” |
Φ73-114 27/8”-41/2” |
Φ73-140 27/8”-51/2” |
Pipe size range of backup tong |
Φ60-114 23/8”-41/2 |
Φ89-141.5 31/2”-51/8 |
Φ89-156 37/2”-61/8 |
High gear rated torque |
1100 N.m 811ft-lbs |
1500 N.m 1106ft-lbs |
2600 N.m 1918 ft-lbs |
Low gear rated torque |
3000 N.m 2213 ft-lbs |
6000 N.m 4425 ft-lbs |
12000N.m 8851 ft-lbs |
Hige gear rated speed |
90 r/min |
85 r/min |
72r/min |
Low gear rated speed |
30 r/min |
20 r/min |
14r/min |
Rated operation pressure |
10Mpa 1450psi |
11Mpa 1595psi |
12Mpa 1470psi |
Max. Flow |
80L/min 21gpm |
100L/min 26gpm |
120L/min 32gpm |
Dimension:L×W×H |
650×430×550 25.6” ×16.9” ×21.7” |
750×500×600 29.5” ×19.7”×23.6” |
1024×582×539 40.3” ×22.9” ×21.2” |
Weight(including backup tong) |
158kg 348 lbs |
220kg 485 lbs |
480kg 1057 lbs |
features | |||
1.clamp the tubing use corresponding dies, jaw set or die seat. | |||
2.torque control valve may be equiped according to customer’s request. | |||
3.choose and buy lengthening guide pole assembly, the backup tong can clamp the tubing body | |||
4.torque control system may be equiped according to customer’s request. | |||
