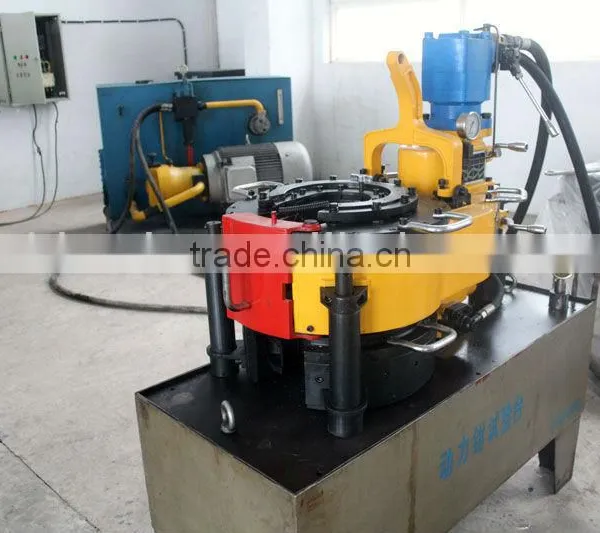

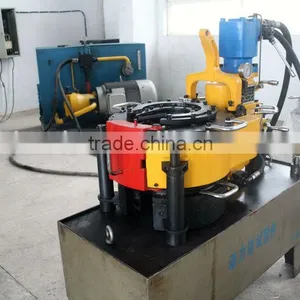

Hydraulic Tubing Power Tong XQ140/12YA

features

1.clamp the tubing use corresponding dies, jaw set or die seat.

2.torque control valve may be equiped according to customer’s request.

3.choose and buy lengthening guide pole assembly, the backup tong can clamp the tubing body

4.torque control system may be equiped according to customer’s request.

Model

XQ140/12YA

Pipe size range of master tong

φ73-140

2⁷/8”-5¹/2”

Pipe size range of backup tong

φ89-156

3⁷/2”-6¹/8

High gear rated torque

2600 N.m

1918 ft-lbs

Low gear rated torque

12000N.m

8851 ft-lbs

Hige gear rated speed

72r/min

Low gear rated speed

14r/min

Rated operation pressure

12Mpa

1470psi

Max. Flow

120L/min

32gpm

Dimension:L×W×H

1024×582×539

40.3” ×22.9” ×21.2”

Weight(including backup tong)

480kg

1057 lbs
