Help CenterChina Manufactuer! XQ28/1.8Y Sucker Rod Tong
Related Products
Specifications
XQ28/1.8Y sucker rod tong2.Type:XQ28/1.8Y
3.can choose torque control valves
4.Used for loading/unloading sucker rods

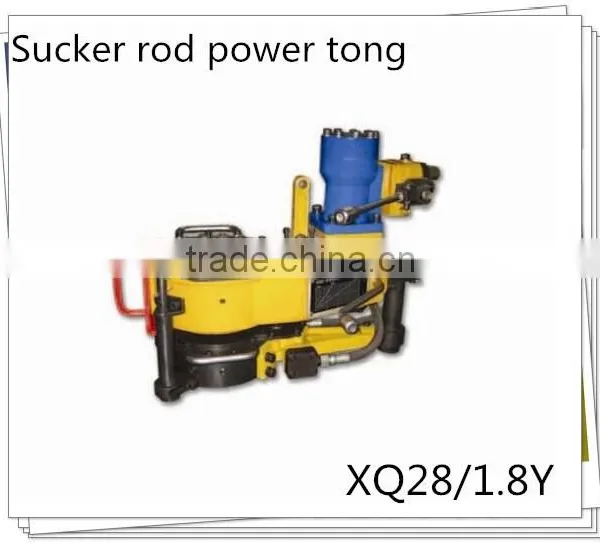

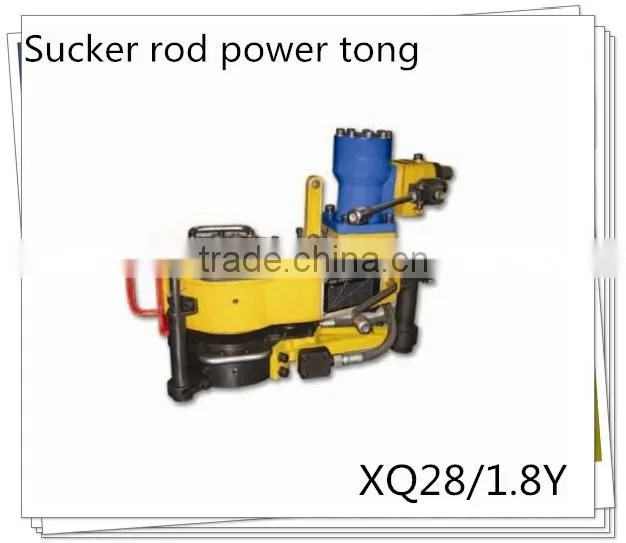

XQ28/1.8Y sucker rod tongs
Detailed description
Sucker rod power tong is an other special purpose machinery to load or unload all kinds of sucker rod in oil field workover operations.
The features are as follows
1.According to various specifications of sucker rod equipped with corresponding jaw plate
2.can choose torque control valves
3.good quality and reasonable prices
Technical parameters
Model |
XQ28/1.8 |
XQ28/2.6 |
The range of master tong |
Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube 5/8"~11/8" |
Sucker rod GYG 16 19 22 25 28 5/8"~11/8" |
the range of Back tong |
Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube 5/8"~11/8" |
Sucker rod GYG 16 19 22 25 28 5/8"~11/8" |
High gear rated torque |
700 N.m |
1000 N.m |
Low gear rated torque |
1800 N.m |
2600 N.m |
High gear rated speed |
104 r/min |
98 r/min |
Low gear rated speed |
40 r/min |
32 r/min |
Rated the system pressure |
10 MPa |
10 MPa |
Maximum supply oil |
65 L/min |
80 L/min |
|
Overal dimension L×W×H(mm) |
543×334×404 |
670×383×490 |
Removed quality(including back clamp) |
105 kg |
100kg 220lbs |
RFQ for your information
1. Q : are you a factory or a trade company?
A : Yes,we are a specilized petroleum machinery products factory for 12 years
2. Q:Where are your factory located in?how can i reach it?
A: our factory is located in PuYang City,HeNan province,you can take the High-speed
rail from Beijing or Shanghai , or by plane to Zhengzhou city.
3. Q: do you have API 5CT certification or other certification?
A: we have API 5CT &API 11b certification ,and ISO 9001 quality control certification
4.Q:for the quality control,how do your factroy control?
A: Firstly,all our seamless tubes,such as J55,K55,N80,L80,P110 are from china biggest
seamless factory,so Tensile Strength & Yield Strength can be assured
A: Secondly,each procedure strictly controlled,and the threads are conntrolled by lathe
and import molding cutter.
