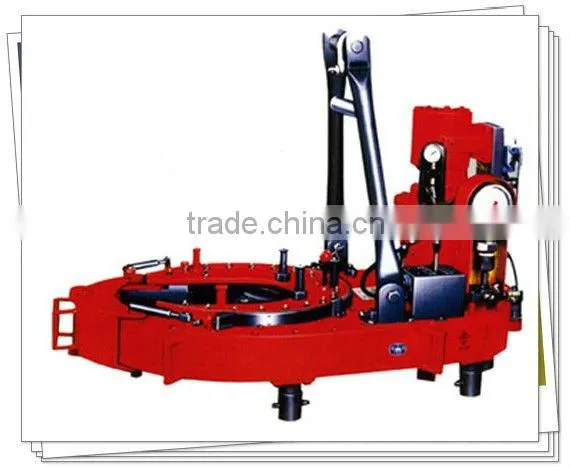

TQ178-16 Casing Tong

TQ178-16 Casing Tong thumbnail-1
TQ178-16 Casing Tong photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BLT
Model Number:
TQ178-16
Contact Supplier Request Quote Chat Now
Puyang Bao Litong Petroleum Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tian Jin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name BLT
Model Number TQ178-16
Type Hydraulic Wrenches

Specifications

1.Name:TQ178-16 casing tong
2.Type: TQ 178-16
3.Features:safe ,reliable ,and easy to handle with high mobility

 Detailed description

        TQ series of casing Tongs are widely used for making up or breaking out pipes or casings diameters of ~13 3/8 ~20. The tong heads are designed open type and can freely clamp and escape from the casing. TQ Casing Tongs are safe ,reliable ,and easy to handle with high mobility .This series of tongs can be connected to computer controlling units and can serve as ideal well mechanical tool for surface operations in oil fields.The tongs are designed and manufactured according to API Spec 7KSpecification for Drilling Equipment . TCS torque monitoring system can be mathed with drill well Power Tongs casing tong and oil pipe Power tong and can be well made-up .The characteristics are as follows .

1. Record and save the ultimate data ,such as :torque ,torque/time of .circles, torque/time. curves, date, time, well-team number ,single and total length.

2. According to the torque and circle number it automatically control the making-up torque and the circle number .It ensures each connected joint in the best condition .

3. You can choose the type writer to record all the data and curves

Technical Parameters

Model TQ178-16Y TQ340-35Y TQ508-70Y TQ178-16 TQ340-35 TQ356-55
Size Range mm 101.6~178 114.3~340 244.5~508 101.6~178 114.3~340 114.3~356
in 4~7 4~13 9~20 4~7 4~13 4~14
Hydraulic System Max.Pressure MPa 18 21 20 18 18 16.6
psi 2610 3045 2900 2610 2610 2400
Hydraulic System Working Pressure L/min 110~160 110~170 110~170 110~160 110~160 110~160
gpm 29.3~42.7 29.3~45.4 29.3~45.4 29.3~42.7 29.3~42.7 29.3~42.7
Overall Dimension mm 1500×760×780 1580×900×860 2080×1280×760 1450×760×740 1580×900×880 1590×950×900
in 59×30×30.7 62.2×35.4×33.9 82×50.4×30 57×30×29.1 62.2×35.4×34.6 62.6×37.4×35.4
Weight kg 560 760 1550 580 780 850
lb 1230 1670 3410 1280 1720 1870
Max.Torque High gear kN.m 2.4~3 4.0~5.6 8.4~10.7 2.4-3 2.5-3 3.4-4.5
ft.lbf 1770~2210 2950~4130 6190~7890 1770~2210 1844-2210 2506-3319
Low gear kN.m 15~18 26~35.2 48.9~70.5 14.5-17.5 32-40 45-57.4
ft.lbf 11060~13270 19175~25960 37244~52000 10694-12900 23600~29500 33190-42400
Speed High gear rpm 54~79 57—95 26~43.6 54—79 60~86 52—76
Low gear rpm 9~13 9~15 46.6 9~13.1 3.6~5.3 3.9~5.6
