800 Meters Trailer Mounted Water Well Drilling Rig SPT-800 for Sale

800 Meters Trailer Mounted Water Well Drilling Rig SPT-800 for Sale thumbnail-1
800 Meters Trailer Mounted Water Well Drilling Rig SPT-800 for Sale thumbnail-2
800 Meters Trailer Mounted Water Well Drilling Rig SPT-800 for Sale photo-1
800 Meters Trailer Mounted Water Well Drilling Rig SPT-800 for Sale photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Puyang Bao Litong Petroleum Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai TianJin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name Bao Litong
Model Number SPT-800
Usage Other, realize drinking water and industrial water supply.
Voltage 380V
Power(W) 213K
Dimension(L*W*H) 12000*2500*4230MM
Weight 22000KGS
Certification ISO9001:2008,SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

800 meters Trailer mounted water well drilling rig SPT-800 for sale

Features:

1 Name: Model SPT-800Trailer water well drilling rig.

2.It's main components are installed in the "YAN SHAN" Trailer chassis , added a separate diesel engine as power, can also be provided with the motor as power, which can be electrically firewood dual-purpose.

3. The drilling mud is to cycle as the main way of drilling, equipped with the appropriate device, can realize reverse circulation drilling, DTH hammer drilling. Equipped with decompression device, significantly improving the drilling efficiency, drilling rig all adopts full hydraulic control.

4.The product can realize the farmland irrigation, drinking water and industrial water supply.

5.All products quality are modeled like as Germany Bauer Drill rig company



Technical Parametre

Model of   Drilling Rig SPT-800
The shape   size 12000x2500x4230(MM)
The drilling   depth 800M
The whole machine weight 22000KGS
Drilling   aperture 500MM
Kelly 108x108x7500MM
Hole Drill   pipe φ89
Drill Chassis   Parts YanShan chassis
The mast section Type:Truss type
Load :60T
Height:15M
Diesel Power   part Diesel engine model:WP10D200E
Mud Pump BW1200/10 mud pump
maximum pressure:10mpa
maximum pump   discharge:1200l/min
The guide pull down mechanism The maximum pull   down:30T
The maximum lifting force:20T
Pull down stroke:10.60M
Pull down   doe rope diameter   Φ9.3 MM
Rotary table gear box Output speed (r/min)
ⅠⅡⅢ IV V reversal(27 49 80 131 208
rotary table Rotary table through hole diameter   (mm):Φ505
The rig can be installed 30KW generator After   the installation of generator, can be used as electric welding, lighting, and   other useful life.

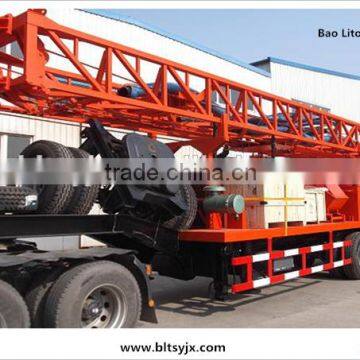

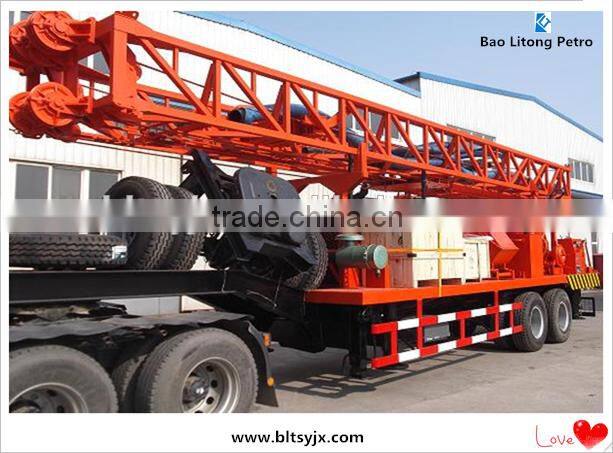

800 meters Trailer mounted water well drilling rig SPT-800 for sale



800 meters Trailer mounted water well drilling rig SPT-800 for sale
