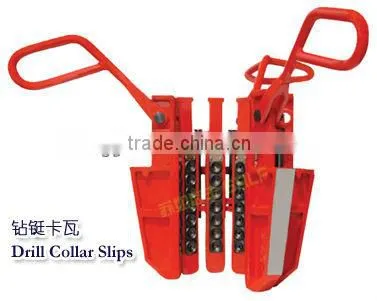

API 7K DCS Drill collar slip for well drilling
Drill collar slip is manufactured in a structure of muli-segment pieces with firm structure, light weight, and large holding range, which is easy to fit the changing of the external diameter of the drill collar due to wear and tear.
1. Specifications
1.drill collar slip
2.type:DCS-S DCS-R DCS-L
3.API Spec 7K ISO9001:2008
4.GB/T 28001-2001
5.GB/T 24001-2004-ISO14001:2004
2.Technical parameters
Type |
DCS-S |
DCS-R |
|||
OD |
in |
3-4 |
4-4.7/8 |
4.1/2-6 |
5.1/2-7 |
mm |
76.2-101.6 |
101.6-123.8 |
114.3-152.4 |
139.7-177.8 |
|
Circular Buttons P/N |
2628-49 |
2620-49 |
2628-63 |
2620-63 |
|
Total number of segments |
7 |
7 |
9 |
9 |
|
Weight |
kg |
51 |
47 |
54 |
51 |
Ib |
112 |
103 |
120 |
112 |
|
Use in insert bowl number |
API or No.3 |
||||
Max.Load (kN) |
360 |
||||
Type |
DCS-L |
||||||
OD |
in |
6.3/4-8.1/4 |
8-9.1/2 |
8.1/2-10 |
9.1/4-11.1/4* |
11-12.3/4* |
12-14* |
mm |
171.4-209.6 |
203.2-241.3 |
215.9-254 |
235-285.7 |
279.4-323.9 |
304.8-355.6 |
|
Circular Buttons P/N |
2630-88 |
2630-96 |
2627-104 |
2630-112 |
2625-128 |
2630-136 |
|
Total number of segments |
11 |
12 |
13 |
14 |
16 |
17 |
|
Weight |
kg |
70 |
78 |
84 |
90 |
90.5 |
94 |
Ib |
154 |
173 |
185 |
198 |
200 |
207 |
|
Use in insert bowl number |
API or No.3 |
No.2 |
No.1 |
||||
Max.Load (kN) |
360 |
||||||

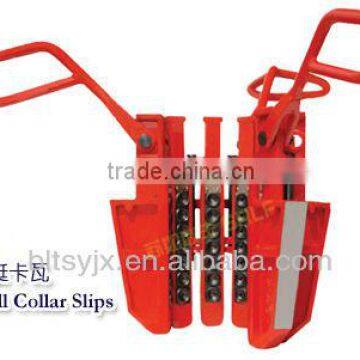

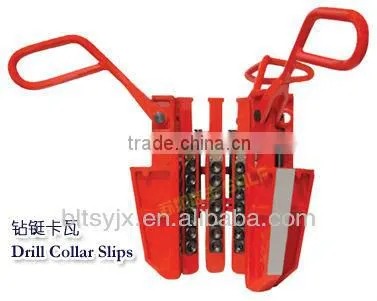

3.Product Picture
