Top Quality 1000 Meteres Truck/Trailer Mounted Water Well Drilling Rig SPT-1000

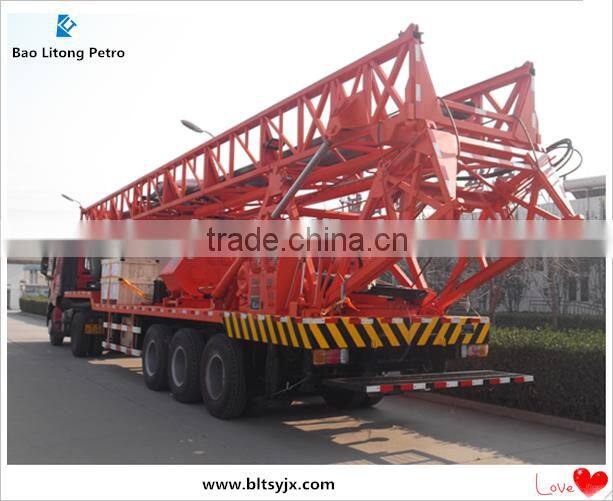

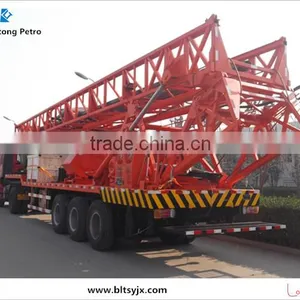

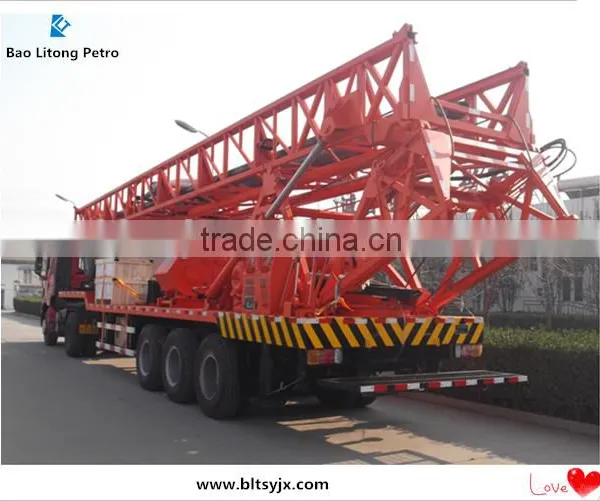

Top Quality 1000 Meteres Truck/Trailer Mounted Water Well Drilling Rig SPT-1000 photo-1
Top Quality 1000 Meteres Truck/Trailer Mounted Water Well Drilling Rig SPT-1000 photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai TianJin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name Bao Litong
Model Number SPT-1000
Usage Other, realize drinking water and industrial water supply.
Voltage 380V
Power(W) 213K
Dimension(L*W*H) 14180*2500*4100MM
Weight 26000KGS
Certification ISO9001:2008,SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Top quality 1000 metres Truck/Trailer mounted water well drilling rig SPT-1000



Feature

1 Name: Model SPT-1000 Trailer water well drilling rig.

2.It's main components are installed in the "YAN SHAN" Trailer chassis , added a separate diesel engine as power, can also be provided with the motor as power, which can be electrically firewood dual-purpose.

3. The drilling mud is to cycle as the main way of drilling, equipped with the appropriate device, can realize reverse circulation drilling, DTH hammer drilling. Equipped with decompression device, significantly improving the drilling efficiency, drilling rig all adopts full hydraulic control.

4.The product can realize the farmland irrigation, drinking water and industrial water supply.

5.All products quality are modeled like as Germany Bauer Drill rig company



Technical Parametre

Model of   Drilling RigSPT-1000
The shape   size14180x2500x4100(MM)
The drilling   depth1000M
Drilling   aperture500MM
Kelly108x108x10450MM
Hole Drill   pipeφ89
Drill Chassis   PartsYanShan chassis
The mast section Type:Truss type
 Load :60T
 Height:16M
Diesel Power   partDiesel engine   model:BF8L513C
Mud PumpBW1500 mud pump
maximum   pressure:12mpa
 maximum pump   discharge:1500l/min
The guide pull down mechanism The maximum pull down:440000N
 Pull down   stroke:10.6M
Pull down doe rope   diameter:Φ9.3 MM
Rotary table gear boxOutput speed (r/min)
ⅠⅡⅢ IV V reversal(27 49 80 131 208
rotary tableRotary table through hole diameter   (mm):Φ505
The rig can be installed 30KW generatorAfter   the installation of generator, can be used as electric welding, lighting, and   other useful life.




 Top quality 1000 meteres Truck/Trailer mounted water well drilling rig SPT-1000

Top quality 1000 meteres Truck/Trailer mounted water well drilling rig SPT-1000



For more informations,please feel free to contact us by



Skype: lindacheng98

Mobile:0086-13912509378
