H Beam Shot Blasting machine and Cleaning Machine (Steel Profile, Steel Plate)

Specifications

This is a multi-purposes pre-treating processing machine for the cleaning of welding
structure, H/I

This is a multi-purposes pre-treating processing machine for the cleaning of welding
structure, H/I beam, profiled steel, net structure and steel plate. Blasting
wheels locate at multi angle, which is the high efficiency blasting wheels, shot
blasting with high-speed thick blasting pills and blowing on every parts of steel
plate to have a tridimensional and omnibearing cleaning on plate, to clean
away the rusting layer, welding slag, oxidation layer and other dirty things from
steel plates quickly, to make steel plate achieve a bright and clean surface and
to improve the adhesion force of painting to steel plate surface and improve
the anti-fatigue force and anti-rust capacity of steel plate, improve the inherent
quality of steel plate and prolong the lifetime of steel plate.

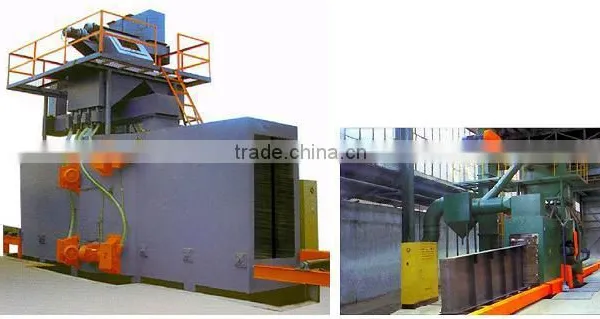

Machine name: Passing type H beam shot blasting and cleaning machine
Model: XQB05H, XQB05HA, XQB06H, XQB06HA, XQB08HD, XQB08A6
Technical data:
Work-piece:
Length :6000-12,000mm
WxH: 500x800, 500x1200, 600x1000, 600x1400, 800x1400, 800x1600mm
Transporting roller:
Transporting speed m/min: 0.5-6
Working speed m/min: 0.5-1.5
Power KW:2 x 2.2
Blasting wheel:
Model: XQH300
Quantity: 4 or 8
Power KW: 4x 11 or 8 x 11
Blasting capacity kg/min: 4x200 or 8x200
Bucket elevator:
Elevating capacity t/h: 50 or 100
Separator:
Separating capacity t/h: 50 or 100
Screw conveyor:
Quantity: 2
Conveying capacity t/h: 50 or 100
Pill-feeding Quantity: 4 or 8
Dusting collector:
Model: HR-12 or HR-16
Dusting: 99%
