Semi-Automatic Automatic Metal Stainless Steel Dished End Polishing Machine for Tank Surface Grinding

Name: Semi-Automatic Automatic Metal Stainless Steel Dished End Polishing Machine for Tank Surface Grinding
Brand: Jotun
Availability: InStock

FOB Price

US$ 10000 - 20000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jotun		Place of Origin	China
Model Number	JT-2-IN-1		After-sales Service Provided	No overseas service provided

Product Description

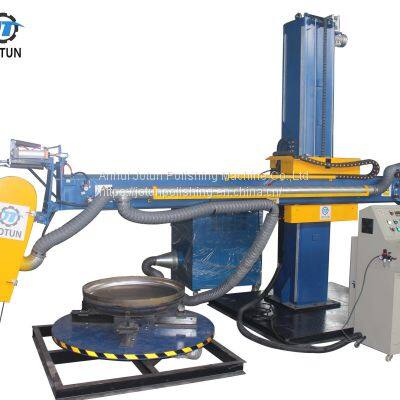

JT-2-IN-1 Tank&Dished End polishing Machine

This machine can both polish tanks and dish ends.It is suitable for all kinds of steel tanks,vessels,dish ends,tank covers to polish the inside and outside. And it can also used to polish the inside and outside,surface finish of the circumferential weld processing. This polishing machine is extensive apply for the polishing of work piece in the range of medical, chemical,purification,food and beverage,water filtration etc.

Specification of grinding and polishing machine
Outer Dimension	450015003080 mm
Machine Weight	2200 kg
Input Power	8 KW
Control System	PLC/CNC
Polishing Materials	Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel
Patent No.	201120122490.4
Note	Our products all Non-Standard Customization

Specifications of Working Pieces
Work Piece Size	Tank/Vessel/Cylinder	Diameter	400-5000 mm
		Max Length	6000 mm
		Max Weight	10 T
	Dished End/Tank Top	Diameter	400-5000 mm
		Depth	2500 mm
		Max Weight	10 T
Material	stainless steel,aluminium alloy,carbon steel,red copper,etc.
Surface Roughness	Ra ≤ 0.4 μm (Mirror Finished)
Product Eifficiency	6 - 12 square meters per hour

1. Grinding with abrasive belt, high efficiency, low noise and less dust. Using thousands of impeller (or wheel dipped emery cloth, wool wheel) polishing, mirror polishing can be achieved.

2. Integrated belt polishing machine, which can respectively polish different parts such as tank body and head, grinding, and select the abrasive belt grinding head with processing precision Ra≤0.2μm (mirror effect). Both workpiece rotation and lateral feed are variable frequency stepless speed regulation, which further improves work efficiency.

3. One device can polish the inner and outer surfaces of the tank and the head, equipped with two sets of grinding heads and two sets of workpiece turning mechanisms.

4. GHS dust collector can be installed.
