Factory Direct Sale Pressure Vessel Shell Inside and Outside Buffing and Polishing Machine
US$ 10000 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jotun
Place of Origin:
China
Model Number:
JT-2-IN-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Jotun Stainless Steel Polishing Machine Tank Vessel Shell Dish Head End Grinding MachineUS$ 10000 - 20000MOQ: 1 Set -
Semi-Automatic Automatic Metal Stainless Steel Dished End Polishing Machine for Tank Surface GrindingUS$ 10000 - 20000MOQ: 1 Set
-
Aluminium Automatic Cylinder Shell and Dished Head Polishing Machine for Stainless Steel Storage Tank VesselUS$ 10000 - 20000MOQ: 1 Set
-
China Automatic Stainless Steel Polishing Machine for Tank and Dish HeadUS$ 9999 - 14999MOQ: 1 Set
-
Jotun Abrasive Belt Tank and Dish Head Polishing Machine for MetalUS$ 9999 - 14999MOQ: 1 Set
Brand Name
Jotun
Place of Origin
China
Model Number
JT-2-IN-1
After-sales Service Provided
No overseas service provided

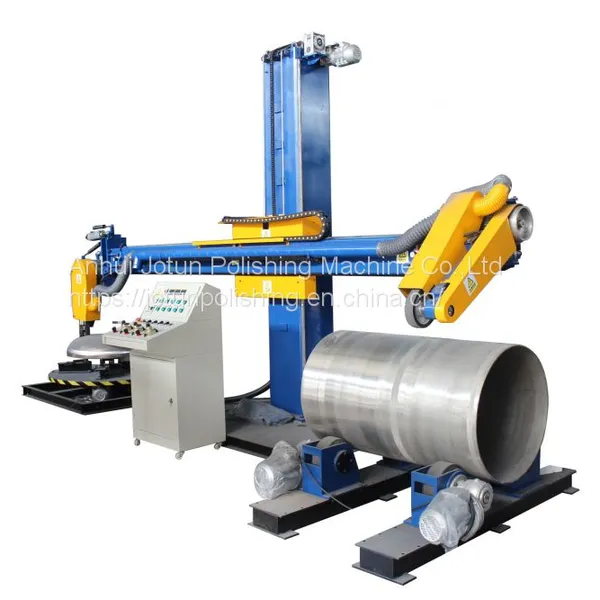

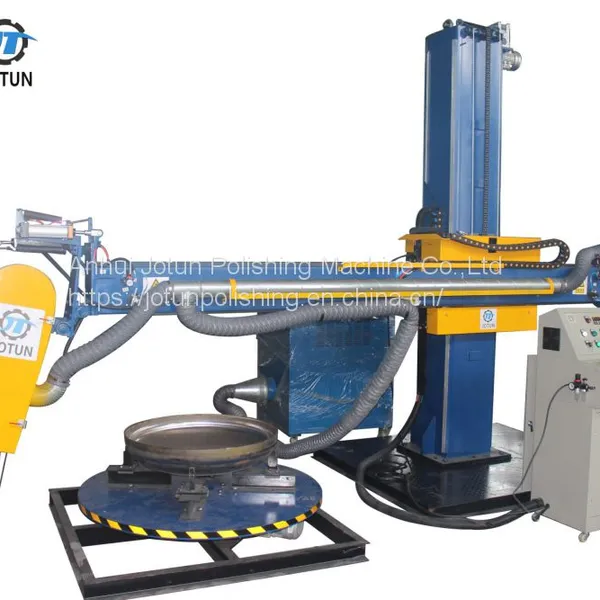

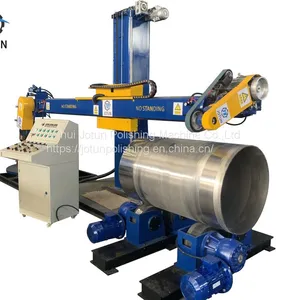

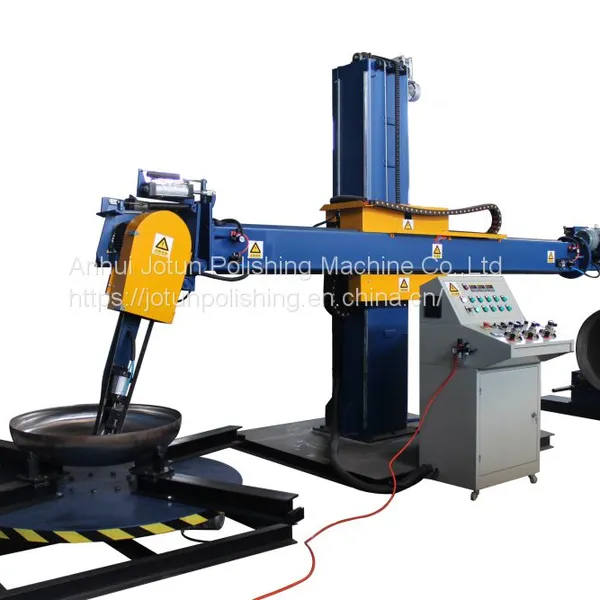

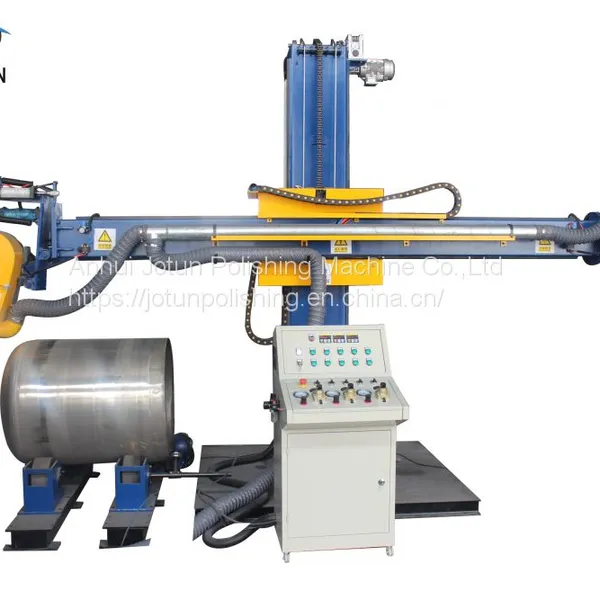

JT-2-IN-1 Tank&Dished End polishing Machine
This machine can both polish tanks and dish ends.It is suitable for all kinds of steel tanks,vessels,dish ends,tank covers to polish the inside and outside. And it can also used to polish the inside and outside,surface finish of the circumferential weld processing. This polishing machine is extensive apply for the polishing of work piece in the range of medical, chemical,purification,food and beverage,water filtration etc.
Specification of grinding and polishing machine | |||
Outer Dimension |
4500*1500*3080 mm |
||
Machine Weight |
2200 kg |
||
Input Power |
8 KW |
||
Control System |
PLC/CNC |
||
Polishing Materials |
Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel |
||
Patent No. |
201120122490.4 |
||
Note |
Our products all Non-Standard Customization |
||
Specifications of Working Pieces | |||
Work Piece Size |
Tank/Vessel/Cylinder |
Diameter |
400-5000 mm |
Max Length |
6000 mm |
||
Max Weight |
10 T |
||
Dished End/Tank Top |
Diameter |
400-5000 mm |
|
Depth |
2500 mm |
||
Max Weight |
10 T |
||
Material |
stainless steel,aluminium alloy,carbon steel,red copper,etc. |
||
Surface Roughness |
Ra ≤ 0.4 μm (Mirror Finished) |
||
Product Eifficiency |
6 - 12 square meters per hour |
||
1. Grinding with abrasive belt, high efficiency, low noise and less dust. Using thousands of impeller (or wheel dipped emery cloth, wool wheel) polishing, mirror polishing can be achieved.
2. Integrated belt polishing machine, which can respectively polish different parts such as tank body and head, grinding, and select the abrasive belt grinding head with processing precision Ra≤0.2μm (mirror effect). Both workpiece rotation and lateral feed are variable frequency stepless speed regulation, which further improves work efficiency.
3. One device can polish the inner and outer surfaces of the tank and the head, equipped with two sets of grinding heads and two sets of workpiece turning mechanisms.
4. GHS dust collector can be installed.
2. Integrated belt polishing machine, which can respectively polish different parts such as tank body and head, grinding, and select the abrasive belt grinding head with processing precision Ra≤0.2μm (mirror effect). Both workpiece rotation and lateral feed are variable frequency stepless speed regulation, which further improves work efficiency.
3. One device can polish the inner and outer surfaces of the tank and the head, equipped with two sets of grinding heads and two sets of workpiece turning mechanisms.
4. GHS dust collector can be installed.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
We regards"reasonable prices,efficient production time and good after-sales service".Hope to cooperate with more customers for mutual development and benefits.
Welcome to visit us!
