Crane safety equipmnet----Angle measuring sensor

 Crane safety equipmnet,Angle measuring sensor

JD-180AngleSensor

Description

JD 180 type Angle Sensor is composed of potentiometer and pendulum; It can be installed on crane boom. The boom on point of view is measured by the heavy hammer driving potentiometer rotating, then output corresponding voltage.

 Main Parameters

Model: JD180-L (Left Mounted) JD180-R (Right Mounted)

Components: conductive plastic potentiometer (CPP)

Measuring Range: -10°~+110°

Rated Output: DC3~6.9V/0 ~ 90°

Working Voltage: DC15V

Linearity:0.1,0.5,1%

Impact Resistance: 20g15~20ms

Water Resistance: Waterproof

Working Humidity: 10~95%

Working Temperature: -20~+60℃

Installation pictures

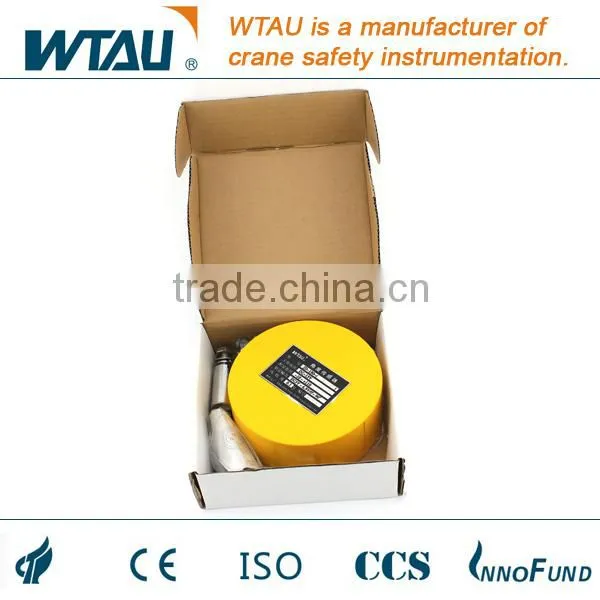

Packing:

Any requirement will be welcomed.
