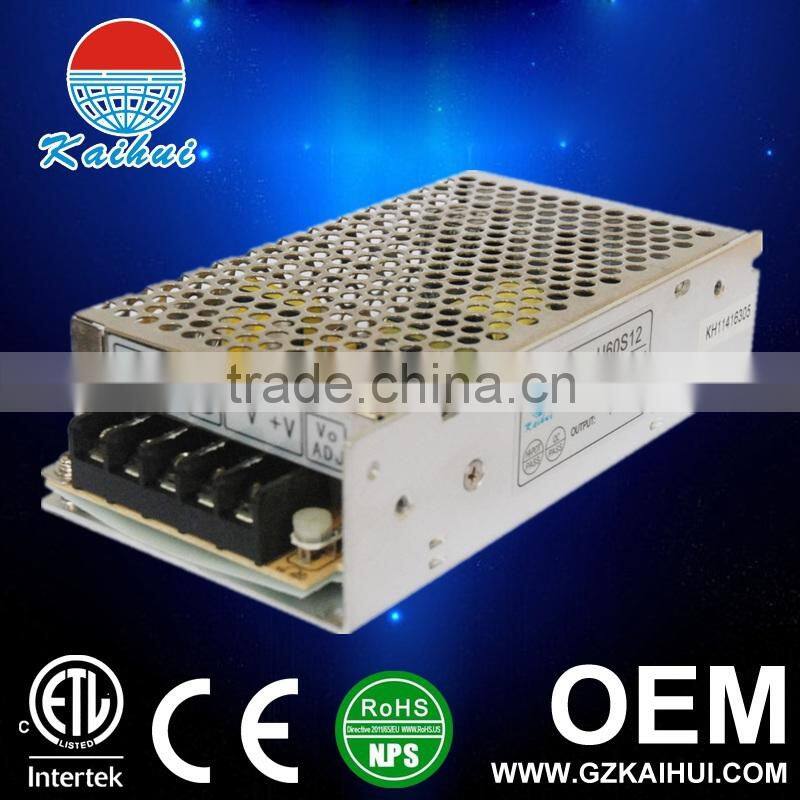

12V 90W DC/UPS Switching Power Supplies for Car From Guangzhou Manufacture

90W switching power

Features:

High quality,competitive price

High efficiency, low temperature

Product: Light/ Thin/ Short/ Small

Built-in EMI filter, low ripple noise

100% full load burn-in test

Protections: Short circuit/ Over load

Input voltage range -----------176-264VAC

Input frequency -----------47~63Hz

Inrush current-------- Cold star 30A/230V

Over load protection ------105%~150%(rated load),Auto-recovery

Setup,rise,hold up time ----200ms,100ms,30ms/230V

Withstand voltage---------- Input-Output: AC1.5KVACV,1min;

Input-Ground:AC1.5KVACV,1min;

Working temperature ------ -10~+50℃@100%, 60℃@60%load

Safety standards -----------MeetGB4943

Weight---------------0.50kg

Code

Item No.

Output

Tol.

R&N

Effi.

Single Output

1220

KDC90-12

+12V,6A

+13.8V,0.7A

±10%

±2%

100mV

80%

1221

KDC90-24

+24V,3A

+27.6V,0.7A

±10%

±2%

100mV

80%
