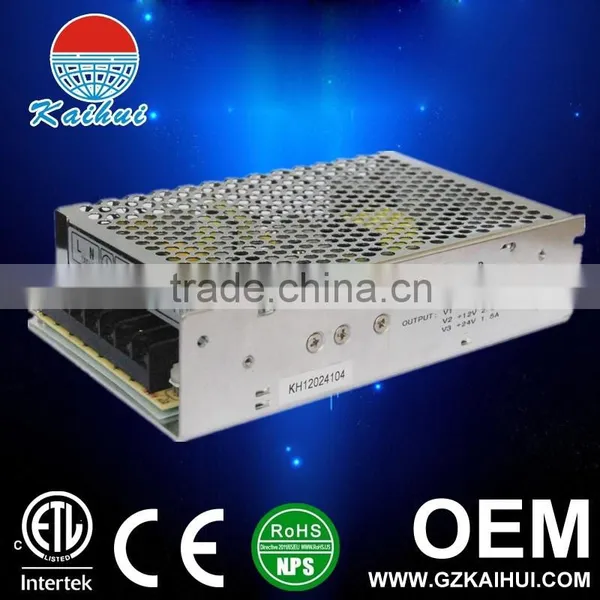

Help Center120W DC-UPS Chargeable Switching Power Supply From Chinese Factory
Related Products
-
40W DC-UPS Chargeable Switching Power Supply From Chinese FactoryUS$ 5 - 9MOQ: 1 Piece -
Dual Output DC12V DC13.8V Chargeable UPS Power SupplyUS$ 6 - 13MOQ: 1 Piece
-
40W DC-UPS Switching Power Supply From Chinese FactoryUS$ 5 - 9MOQ: 1 Piece
-
120W 12V Triple Output Switching Power Supply for Industrial Telecommuncation Field From Guanghzhou China (Mainland)US$ 11 - 19MOQ: 1 Piece
-
40w DC-UPS Backup Battery for Door Access Control SystermUS$ 4.9 - 9.9MOQ: 1 Piece
40W~130W PCB switching power supply
Product Detail show
High quality,competitive price
High efficiency, low temperature
Product: Light/ Thin/ Short/ Small
Built-in EMI filter, low ripple noise
100% full load burn-in test
Protections: Short circuit/ Over load
1.High quality,competitive price
2.High efficiency, low temperature
3.Product: Light/Thin/Short/Small
4.Built-in EMI filter
120W DC-UPS |
case:K807 159×98×38mm |
||||
Features: | |||||
Product:Small Size, High efficiency | |||||
Universal AC input/ Full range | |||||
Protections:Short circuit/Over load | |||||
Charging/discharging switch automatically | |||||
Battery under voltage protection | |||||
Fully charge discharge instructions | |||||
Input voltage range -----------176~264V AC | |||||
Over load protection ------105%~150%(rated load),Auto-recovery | |||||
Charge mode --------rated voltage,(current)charge | |||||
Withstand voltage---------- Input-Output: AC1.5KVACV,1min; | |||||
Working temperature ------ -10~+50℃@100%, 60℃@60%load | |||||
Safety standards -----------MeetGB4943 | |||||
Weight---------------0.6kg | |||||
Code |
Item No. |
Output |
Tol. |
R&N |
Effi. |
0720 |
KDC120-1224 |
+12V,4A |
±10% |
100mV |
80% |
|
|
+13.8V,1A |
±2% |
(charge) |
|
|
|
+24V,2A |
±1% |
100mV |
|
0721 |
KDC120-24 |
+24V,4A |
±10% |
100mV |
80% |
|
|
+27.6V,1A |
±2% |
|
|
