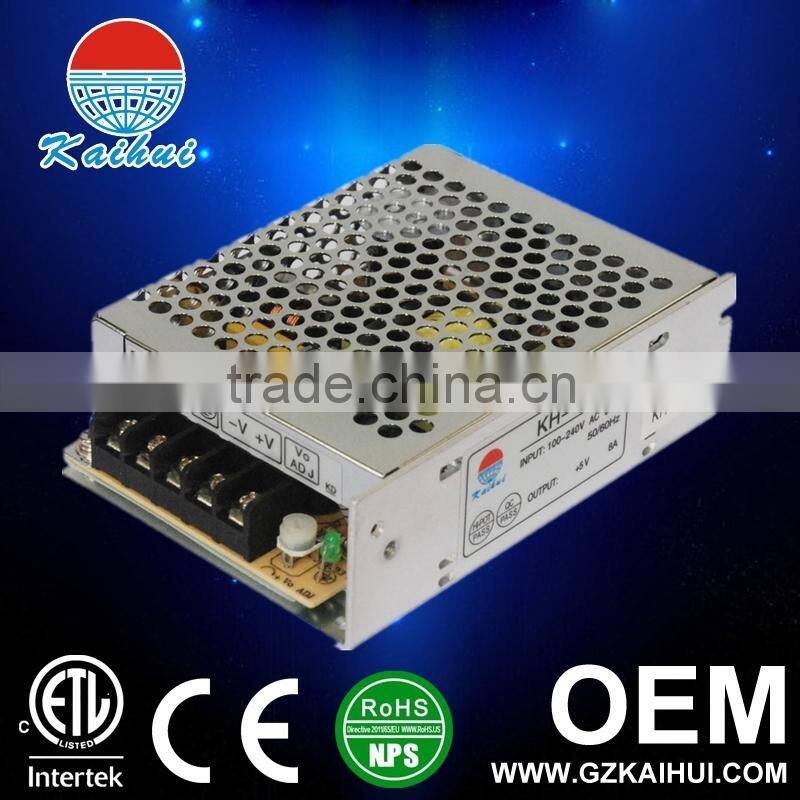

Help Center40W DC-UPS Chargeable Switching Power Supply From Chinese Factory
Related Products
-
Dual Output DC12V DC13.8V Chargeable UPS Power SupplyUS$ 6 - 13MOQ: 1 Piece -
40W DC-UPS Switching Power Supply From Chinese FactoryUS$ 5 - 9MOQ: 1 Piece
-
120W 12V Triple Output Switching Power Supply for Industrial Telecommuncation Field From Guanghzhou China (Mainland)US$ 11 - 19MOQ: 1 Piece
-
40w DC-UPS Backup Battery for Door Access Control SystermUS$ 4.9 - 9.9MOQ: 1 Piece
-
350W DC-UPS Switching Power SupplyUS$ 20 - 26MOQ: 1 Piece
40W~130W PCB switching power supply
Product Detail show
High quality,competitive price
High efficiency, low temperature
Product: Light/ Thin/ Short/ Small
Built-in EMI filter, low ripple noise
100% full load burn-in test
Protections: Short circuit/ Over load
1.High quality,competitive price
2.High efficiency, low temperature
3.Product: Light/Thin/Short/Small
4.Built-in EMI filter
40W DC-UPS |
case:K805 110×78×35mm |
||||||
Features: | |||||||
Product:Small size, High efficiency | |||||||
Universal AC input/ Full range | |||||||
Protections:Short circuit/Over load | |||||||
Charging/discharging switch automatically | |||||||
Battery under voltage protection | |||||||
Fully charge discharge instructions | |||||||
Input voltage range -----------176~264V AC | |||||||
Over load protection ------105%~150%(rated load),Auto-recovery | |||||||
Charge mode --------rated voltage,(current)charge | |||||||
Withstand voltage---------- Input-Output: AC1.5KVACV,1min; | |||||||
Working temperature ------ -10~+50℃@100%, 60℃@60%load | |||||||
Safety standards -----------MeetGB4943 | |||||||
Weight---------------0.4kg | |||||||
Code |
Item No. |
Output |
Tol. |
R&N |
Effi. |
||
0520 |
KDC40-12 |
+12V,3A |
±10% |
100mV |
80% |
||
|
|
+13.8V,0.7A |
±2% |
|
|
||
0521 |
KDC40-24 |
+24V,1.5A |
±10% |
100mV |
80% |
||
|
|
+27.6V,0.4A |
±2% |
|
|||
