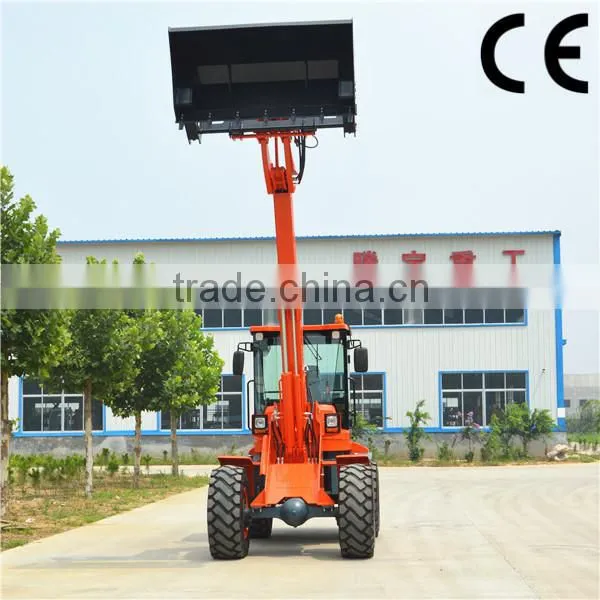

4x4 wheel drive wheel loader:
wheel loader Features:
1.The telescopic boom which can reach 4.2m greatly increase it’s working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.
3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Wide view cabin and two entrance makes the operating convenient and safe.
6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.
7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.
wheel loader Specifications:
Model |
TL2500 |
|
Engine Details |
Engine model |
YUNNEI 4102GB |
|
Engine power |
58KW (78.88H.P.) |
|
Rated Speed |
2400 r/p.min |
|
Engine cooling way |
Water cooling |
|
Fuel Consumption ratio |
180g/kw.h (standard working condition) |
|
Engine type |
In-line arrangement,4 cycle diesel Engine |
Bucket |
Bucket Capacity |
1.2 m3 |
|
Bucket width |
1800mm |
|
Bucket type |
Heavy-duty bolt on teeth |
|
Rated Load: |
2500kg including attachment |
Overall Dimensions |
Overall Length |
4500mm |
|
Overall Height: |
2720mm |
|
Overall Width |
1870mm |
|
Max. lifting Height |
4500mm |
Tyre |
Model |
20.5-16, 12ply |
|
Width |
307mm |
|
Diameter |
831mm |
Brake System |
Service Brake |
Four Wheel disk brake |
|
Parking Brake |
Hand operated |
|
Braking Type |
Air braking |
|
Axle |
With hub reducer |
Transmission System |
Hydraulic converter + drive shaft + axles |
|
Wheelbase |
2430mm |
|
Min Turning Radius |
5600mm |
|
Track |
1470mm |
|
Weight |
4900kg(without bucket) |
|
System Pressure |
20Mpa |
|
Hydraulic output: |
96L/min |
|
Max. Height to the Pin |
4200 mm |
|
Our wheel loader has been exported many countries all over the world,especially for Europe market:
Welcom to visit of our factory and inquiry me!!!!
