Mini Loader Made in China DY1150 Compact Wheel Loader for Sale

Mini Loader Made in China DY1150 Compact Wheel Loader for Sale photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TAIAN
Model Number:
DY1150
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name TAIAN
Model Number DY1150
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 3410*1500*2330mm
Rated Load 1500-1800kg
Certification CE&ROPS
Warranty one year or 1000 work hours whichever comes first
After-sales Service Provided Engineers available to service machinery overseas

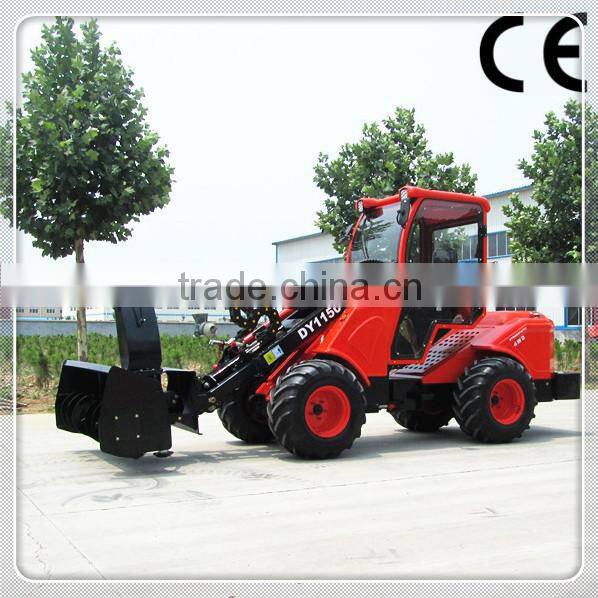

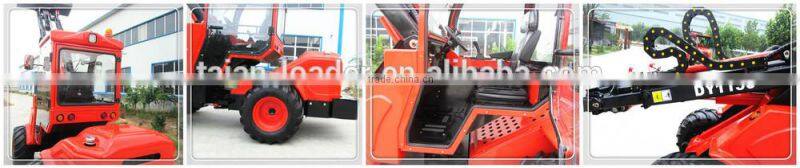

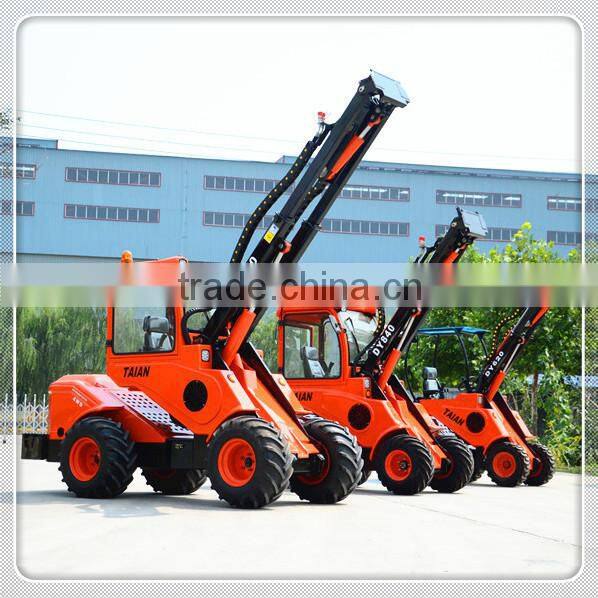

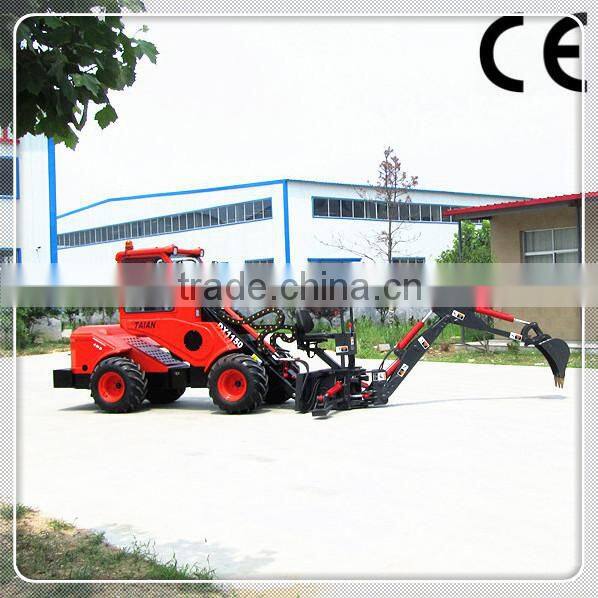

Mini loader made in China DY1150 compact wheel loader for sale





  1. Hydrostatic four wheel drive, four independent hydraulic wheel motor.
  2. With CE certificate
  3. World famous Perkins/Kubota engine.
  4. Telescopic boom widely extends the working scope.
  5. Self leveling.
  6. Differential lock
  7. Boom floating
  8. Four post ROPS.
  9. Optional rear hydraulic output allows you to use attachments on the rear part of the machine, just like a tractor.
  10. European standard quick coupling plate allows the machine can use all attachments available on the market.
  11. Convenient maintenance. There's pressure testing connector on the front chassis, you just need a gauge can know the system pressure. The engine cover can be opened easily by just loosen four bolts. And also there's oil level check hole on the rear cover, etc.
  12. Thheater makes the operation more comfortable in winter, and in summer, you can remove the glasses to be cool. Also three sides of the cabin can be open a bit and hooked to get ventilation inside the cabin.
  13. Rotating warning light on top.
  14. Sound alarm for maintenance and warnings.
  15. Convenient Cigar lighter.
  16. Pneumatic rod of the door.

compact wheel loader Specifications:

Model

DY1150 compact wheel loader

Max. length

3410 mm

Max. width

1500 mm

Max. height

2330 mm

Max. reach(boom extended)

3540mm

Max. reach(boom retracted)

2910mm

Bucket capacity

600L

Rated loading capacity

1500~1800kg

Min. turning radius

2818mm

Ground clearance

330mm

Turning angle

450

Speed

16.5 km/h

Weight

2010 kg

Standard tire

31X15.5-15

Tire pressure

2.8 bar

Oil tank capacity

70L

Pressure

200bar

Working oil flow

82L/min

Tracking oil flow

117L/min

Oil model(mineral oil)

L-HL46

Engine brand

Kubota V2403-E3B

Number of cylinder

4

Cooling system

Water cooling

Rated power

36.5 Kw

Rotation speed

2600 r/min

Fuel tank capacity

32L

Battery capacity

70Ah

Voltage

12v

OPTIONS

Closed cabin with door

Heating Systerm

Rear hydraulic output

Collapsible Roll Bar

Trailer hook

3 point hitch
