4 in 1 Bucket Loader With CE Certficate,1.5 Ton Tl1500 Wheel Loader CE

Articulated boom loader TL1500

There are four models of TL series telescopic loader, TL1000, TL1500 and TL2500, lifting capacity from 1 ton to 2 tons, can meet customers’ different demands. Also based on our rich experiences with loaders, we can also design according to customers’ special requirement.

Features:

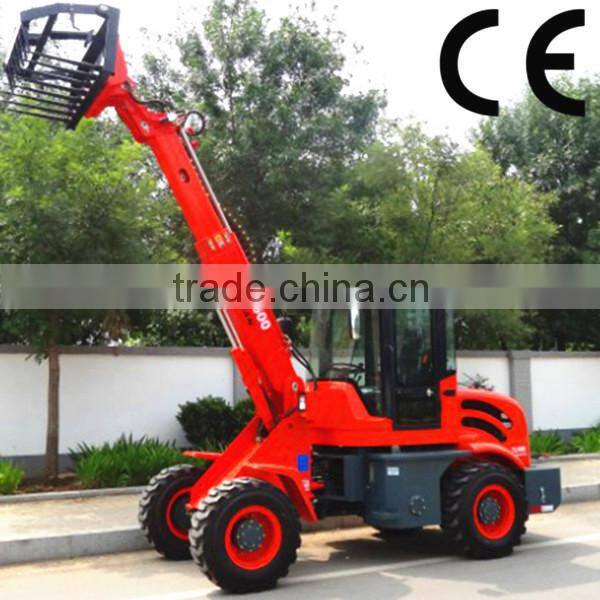

1.The telescopic boom which can reach 4.2m greatly increase it’s working scope.

2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.

3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.

4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5.Wide view cabin and two entrance makes the operating convenient and safe.

6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.

Specifications:

1.0 Engine Details

(1) Model: Euro III Xinchai 498BPT/Euro III Changchai 4L68

(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power:37KW (50.32H.P.)

(4) Rated Speed:2200 r/p.min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g/kw.h

2.0 Transmission System

Hydraulic converter + drive shaft + axles

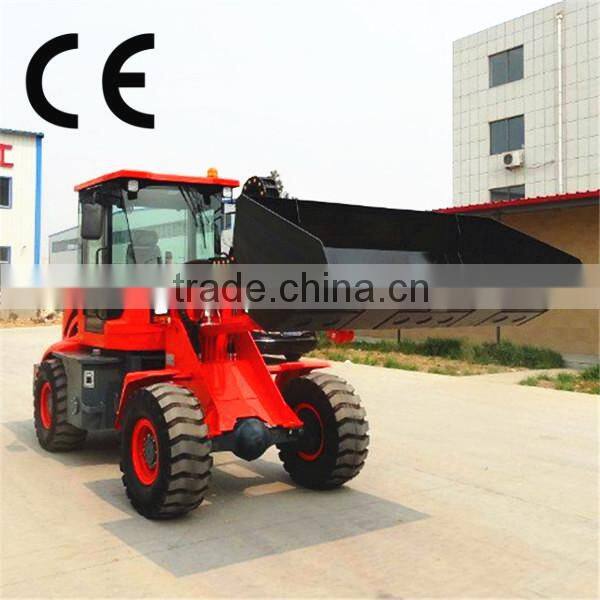

3.0 Bucket

(1) Bucket Capacity: 0.65 m3

(2) Bucket width: 1700mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load: 1500kg including attachment

4.0 Overall Dimensions

(1) Overall Length: 4320mm

(2) Overall Height:2670mm

(3) Overall Width: 1720mm

(4) Max. lifting Height:4250mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4950mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) Quick coupling system

(5) Joystick

(6) Self levering

6.0 Brake System

(1) Service Brake:Four Wheel Chuck brake

(2) Parking Brake:Hand operated

7.0 Tyre

(1) Model:20.5-16, 12ply (2)Width: 307mm(3) Diameter: 831mm

8.0 Wheelbase: 2400mm 9.0 Track: 1345mm

10. Weight:4900kg

11. system pressure:20Mpa; Hydraulic output:96L/min
