4x4 Mini Tractor With 2.5Ton Wheel Loaders TL2500

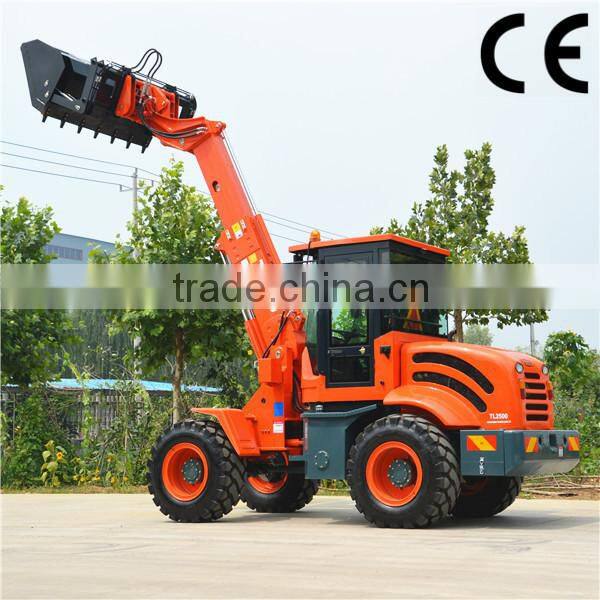

4x4 Mini Tractor With 2.5Ton Wheel Loaders TL2500 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TAIAN
Model Number:
TL2500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name TAIAN
Model Number TL2500
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 4500x1870x2720mm
Rated Load 2500kg
Certification CE&ISO
Warranty one year or 1000 work hours whichever comes first
After-sales Service Provided Engineers available to service machinery overseas

4x4 wheel drive wheel loader:

Product Description

wheel loader Features:

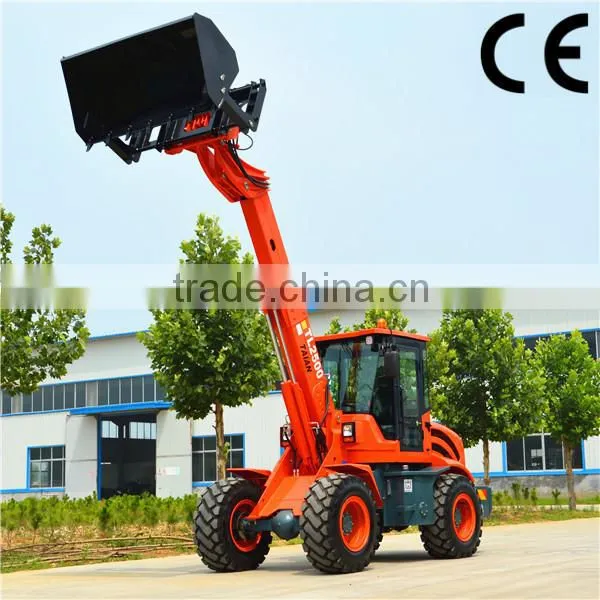

1.The telescopic boom which can reach 4.2m greatly increase it’s working scope.

2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.

3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.

4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5.Wide view cabin and two entrance makes the operating convenient and safe.

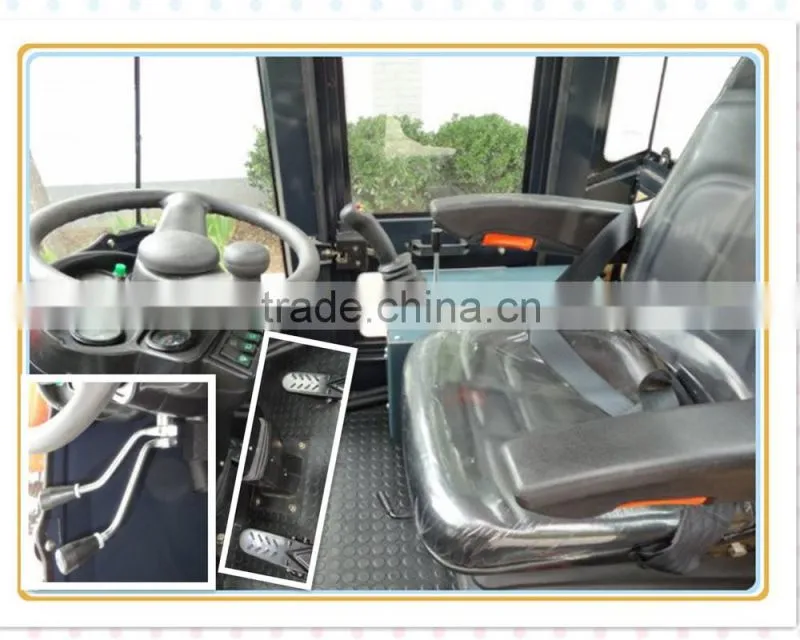

6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.



wheel loader Specifications:



Model

TL2500

Engine Details

Engine model

YUNNE4102GB



Engine power

58KW (78.88H.P.)



Rated Speed

2400 r/p.min



Engine cooling way

Water cooling



Fuel Consumption ratio

180g/kw.h (standard working condition)



Engine type

In-line arrangement,4 cycle diesel Engine

Bucket

Bucket Capacity

1.2 m3



Bucket width

1800mm



Bucket type

Heavy-duty bolt on teeth



Rated Load:

2500kg including attachment

Overall Dimensions

Overall Length

4500mm



Overall Height:

2720mm



Overall Width

1870mm



Max. lifting Height

4500mm

Tyre

Model

20.5-16, 12ply



Width

307mm



Diameter

831mm

Brake System

Service Brake

Four Wheel disk brake



Parking Brake

Hand operated



Braking Type

Air braking



Axle

With hub reducer

Transmission System

Hydraulic converter + drive shaft + axles

Wheelbase

2430mm

Min Turning Radius

5600mm

Track

1470mm

Weight

4900kg(without bucket)

System Pressure

20Mpa

Hydraulic output:

96L/min

Max. Height to the Pin

4200 mm

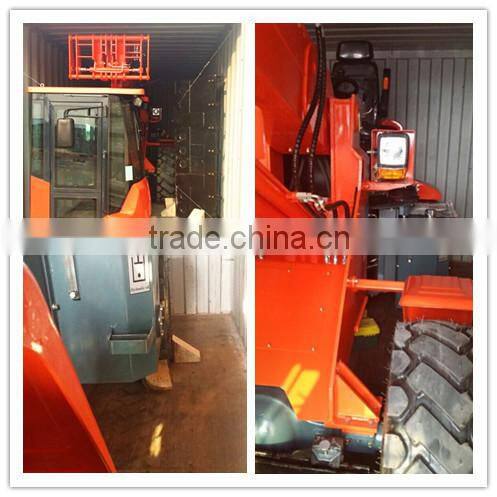

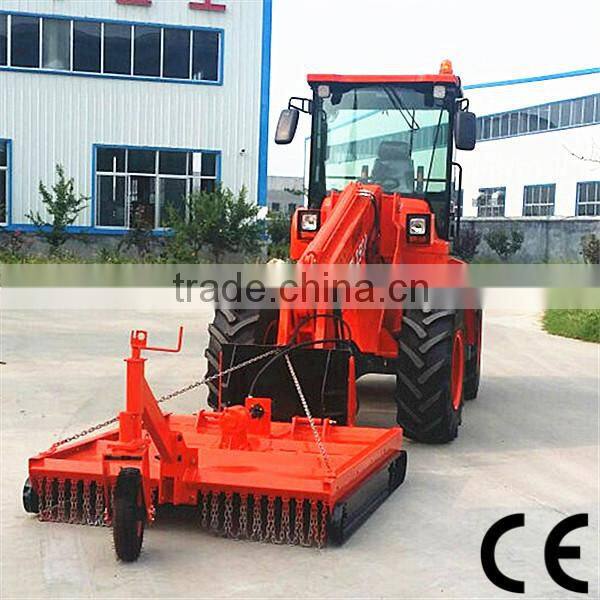

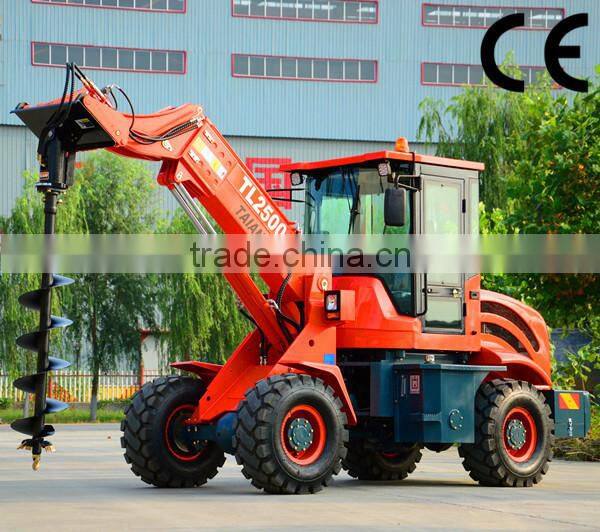

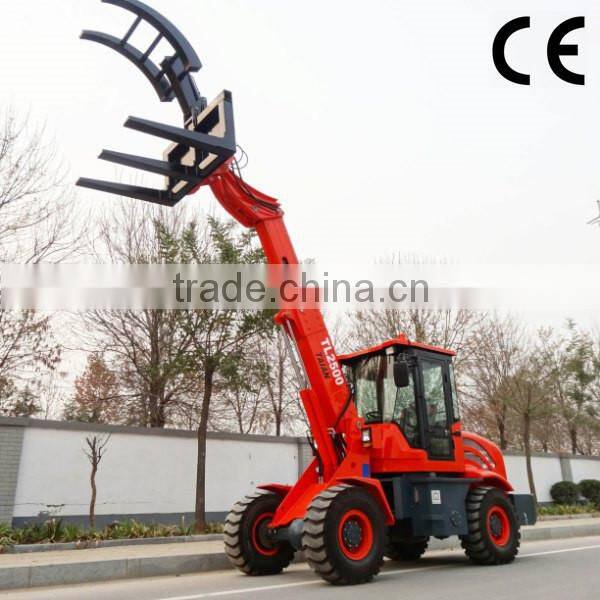

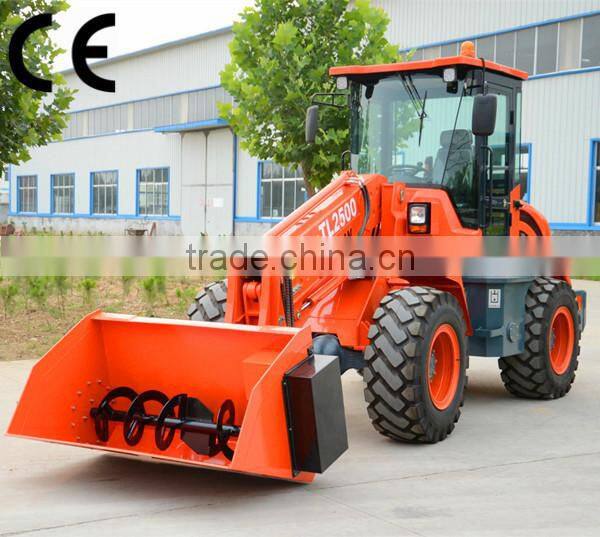

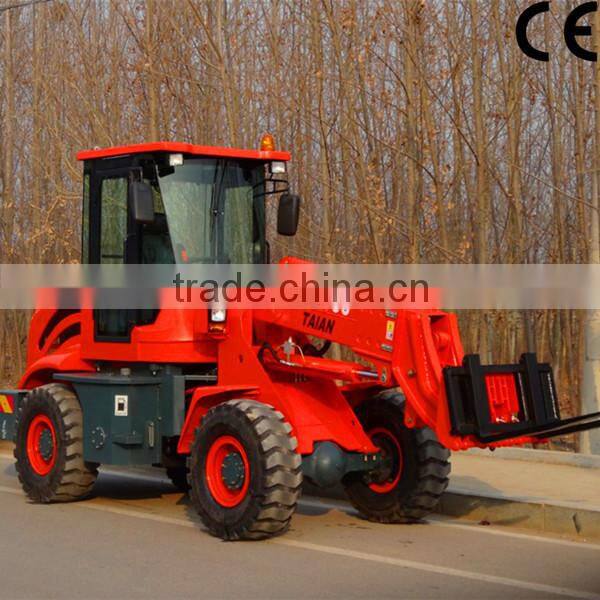

4x4 mini tractor with 2.5Ton wheel loaders TL25004x4 mini tractor with 2.5Ton wheel loaders TL25004x4 mini tractor with 2.5Ton wheel loaders TL25004x4 mini tractor with 2.5Ton wheel loaders TL25004x4 mini tractor with 2.5Ton wheel loaders TL2500

4x4 mini tractor with 2.5Ton wheel loaders TL2500

4x4 mini tractor with 2.5Ton wheel loaders TL2500

4x4 mini tractor with 2.5Ton wheel loaders TL2500

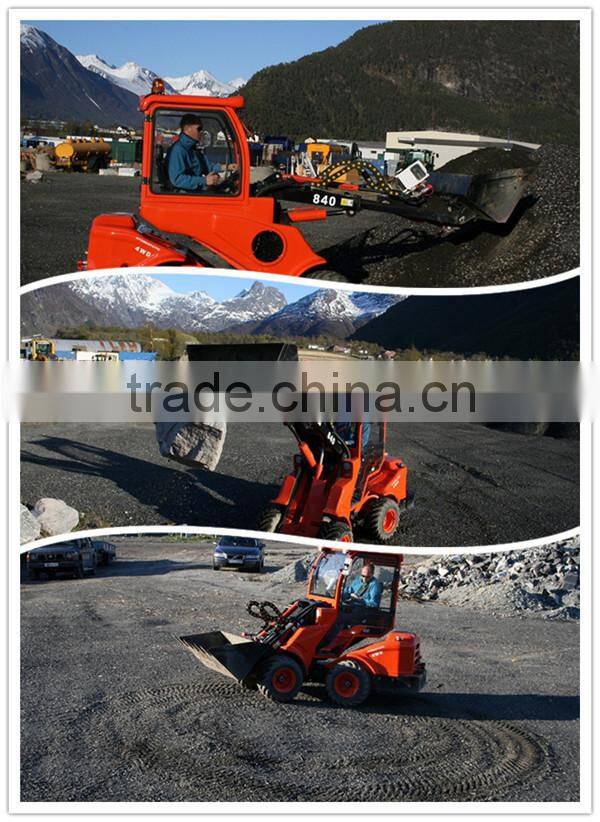

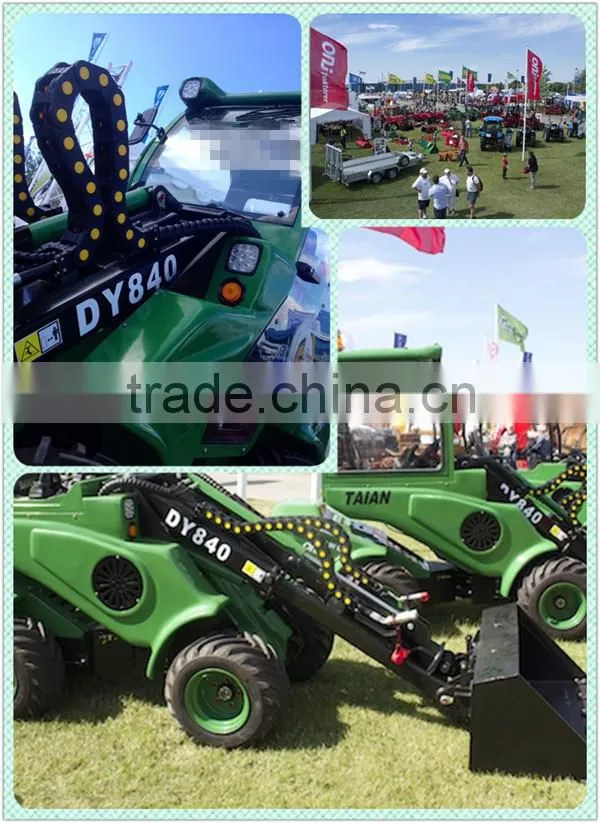

Our wheel loader has been exported many countries all over the world,especially for Europe market:

4x4 mini tractor with 2.5Ton wheel loaders TL25004x4 mini tractor with 2.5Ton wheel loaders TL2500

4x4 mini tractor with 2.5Ton wheel loaders TL2500

4x4 mini tractor with 2.5Ton wheel loaders TL25004x4 mini tractor with 2.5Ton wheel loaders TL2500

Welcom to visit of our factory and inquiry  me!!!!
