High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN

High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN thumbnail-1
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN thumbnail-2
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN thumbnail-3
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN thumbnail-4
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN thumbnail-5
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN thumbnail-6
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN photo-1
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN photo-2
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN photo-3
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN photo-4
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN photo-5
High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN photo-6
US$ 52 - 69 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Topda
Model Number:
T324-H
Contact Supplier Request Quote Chat Now
Jiangmen Topda Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou Jiangmen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Topda
Model Number T324-H

expert in exceedingly fast 433mhz wireless rf receiver module



2.4G 300M HIGH Power Ceiling AP router



Introduction

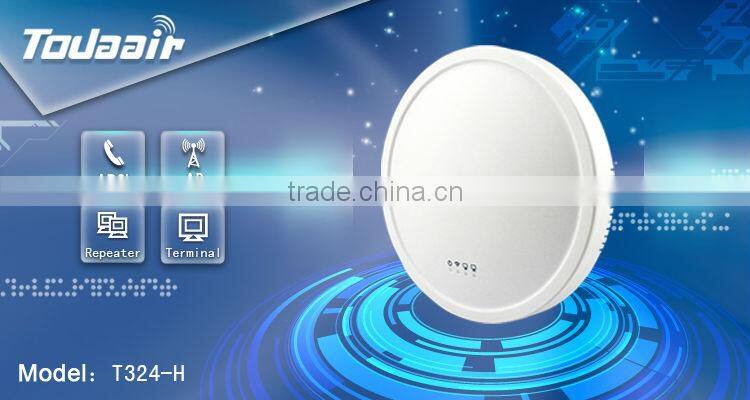

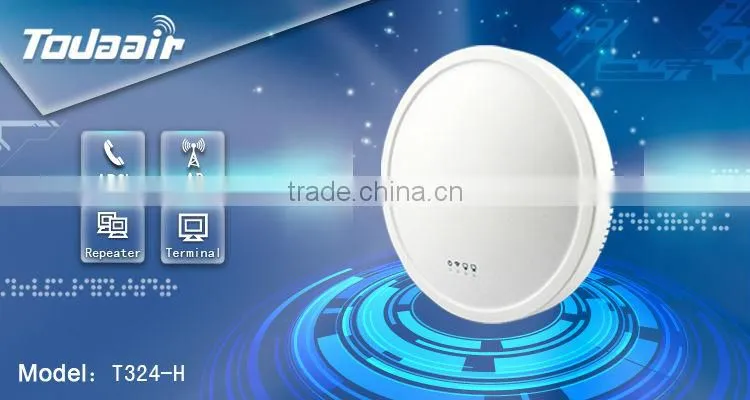

1.Todaair T324-H  is the latest ceiling wireless bridge, working for AP,WDS,Terminal,Relay .

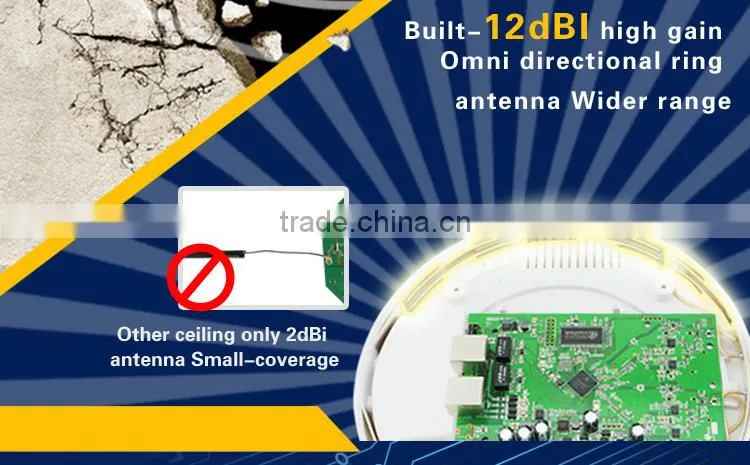

 2.It has 12DB creative circular omnidirectional antennawhich provides higher gain and broader coverage.
 3.The bridge operates in the 2.4G frequency and the transmit rate up to 300M.Make sure that the Wifi signal is accessible and stable.



Features

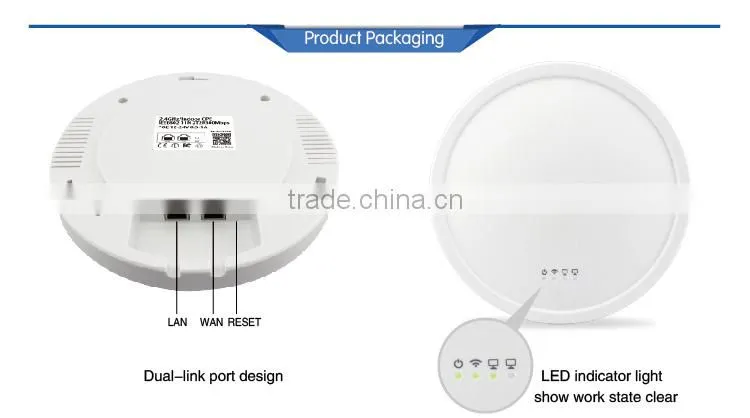

1.Indicator light indicates work state clearly.The design of ceiling is elegant.



2.Dual-network port POE power supply.



3.Double polarized system,higher bandwidth.



4.Powerful radiator made the work of the board to maintain optimal state.

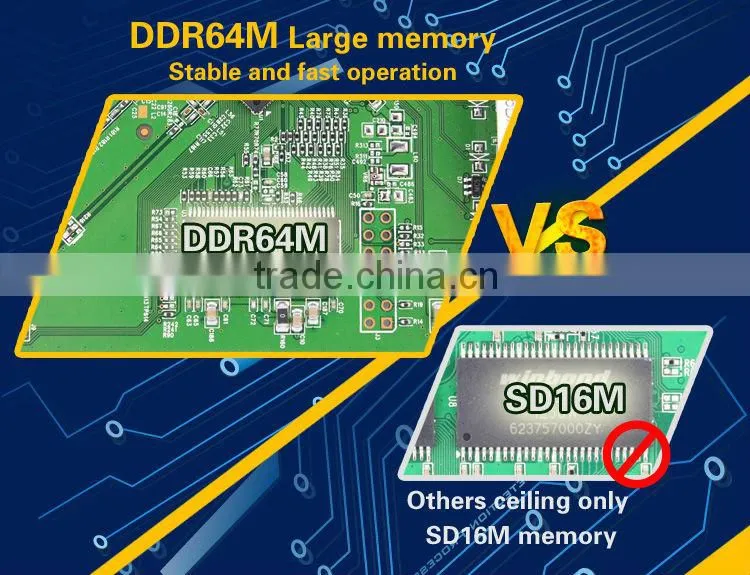

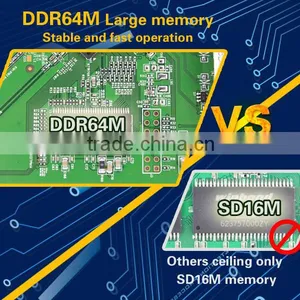

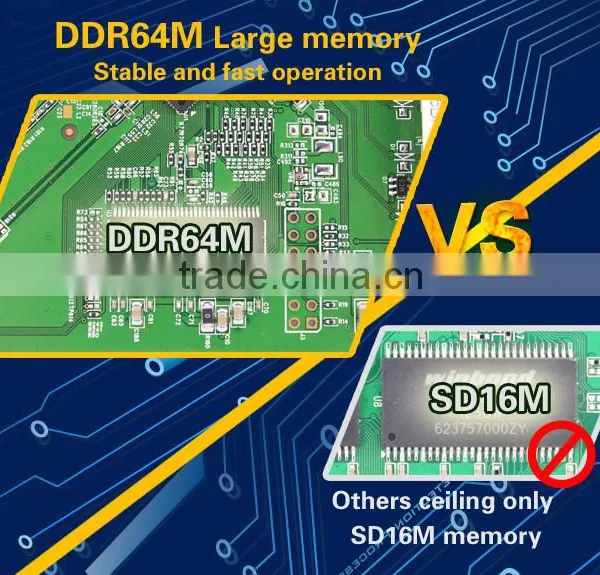

5.8M FLISH 64M memory and 400MHZ,it’s a hardware platform to make powerful, more stable and high-performance.


Specification



Hardware specification

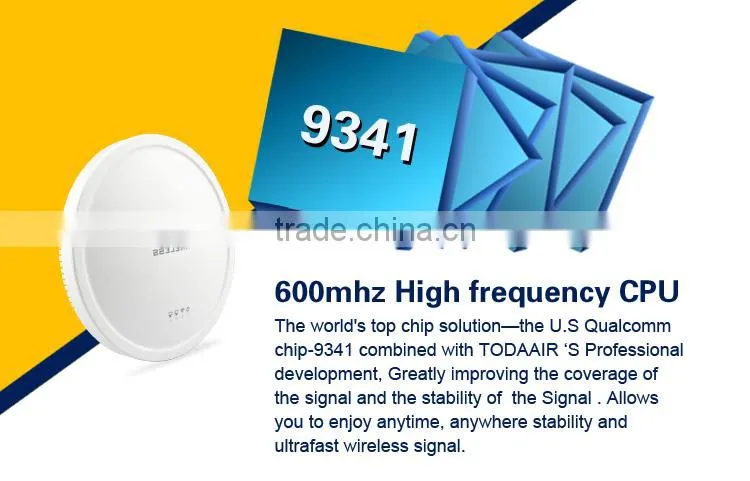

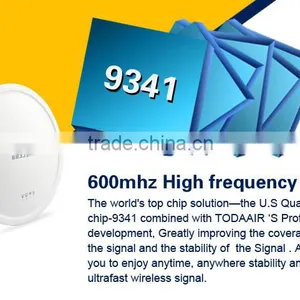

ATHEROS  AR7240 400MHZ CPU RF 64MDDR 8M FLASH

Frequency Bands

2.4GHz

RF Output Power

26dBm

Modulation Mode

DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM

Sensitivity

300M:-68dBm@10% PER;

270M:-68dBm@10% PER;

130M:-68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@8% PER

11M: -85dBm@8% PER

6M: -88dBm@8% PER

1M: -90dBm@8% PER

Data and operating parameters

Automatic
rate selection

802.11n:6.5-144.44Mbps

802.11b:11/5.5/2/1Mbps

802.11g:108/54/48/36/24/18/12/9/6Mbps

Standard

IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE 802.3u,IEEE 802.3af

Support Protocols

 CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5

Size and environmental

Environmental

Physical performance

Weight

0.7kg

Operation Temperature

-30~65°C

Size

210*210*40mm

Storage Temperature

-50~80°C

Packing

310*250*65mm

Storage Humidity

≤95%(non-condensation)

Management

Web management

Yes

SNMP MIB

Yes

Telnet

Yes

Security

MAC control

Yes

 encryption

WEP  key 64/128 bits,WPA,WPA2,802.1x

Antenna System

Frequency Band(Mhz)

2400

Polorization

Horizontal,Vertical

Increase Ratio(DBi)

12DB



High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN



Model

T324-H

Frequency range

2.4Ghz

Transmission Rate

300Mbps

Power

1200MW

Coverage

500m2

Antenna

12dBi



Wireless bridge introduction

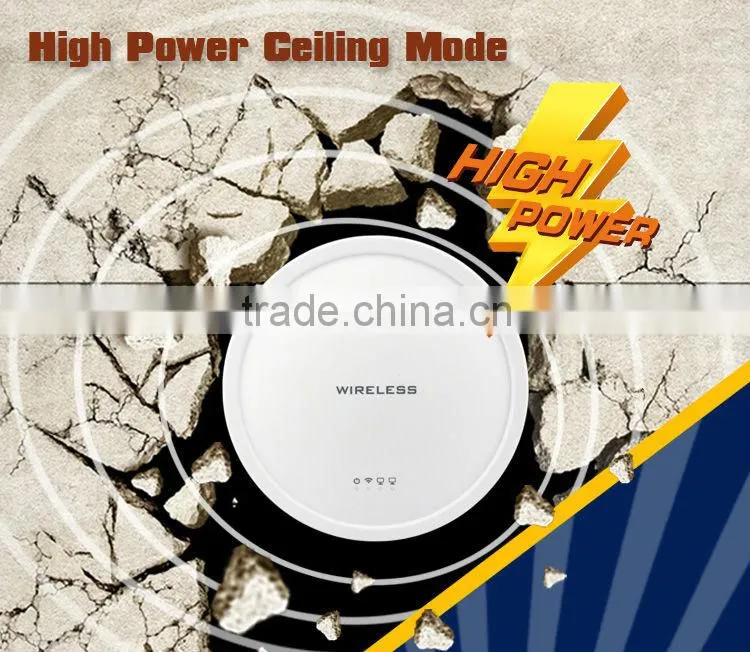

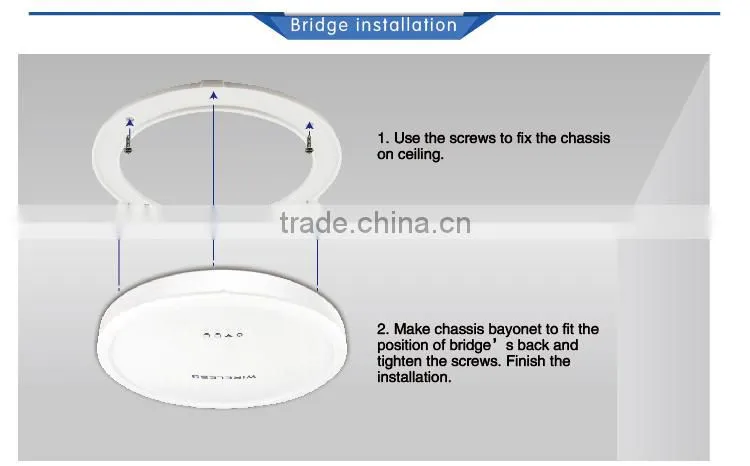

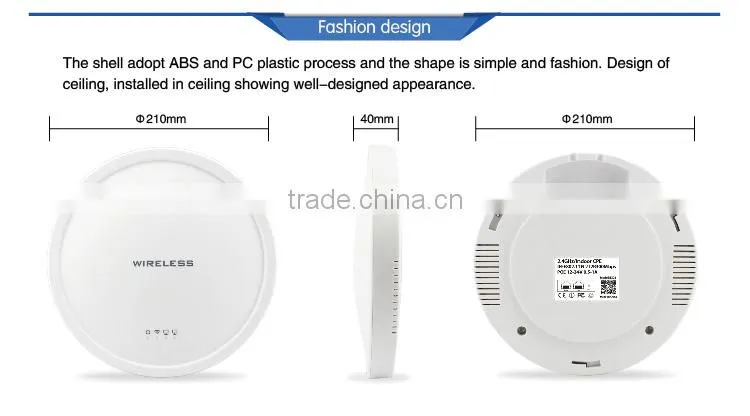

The shell adopt ABS and PC plastic process and the shape is simple and fashion.Design of ceiling,installed in ceiling showing well-designed appearance.



High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLANHigh Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN

High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN

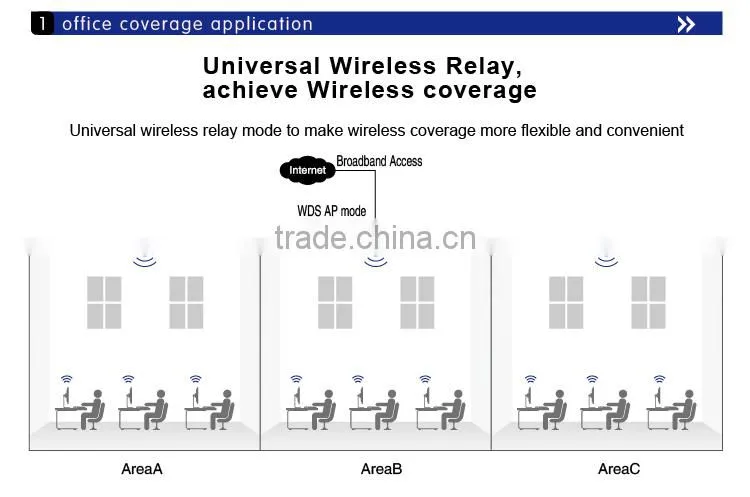

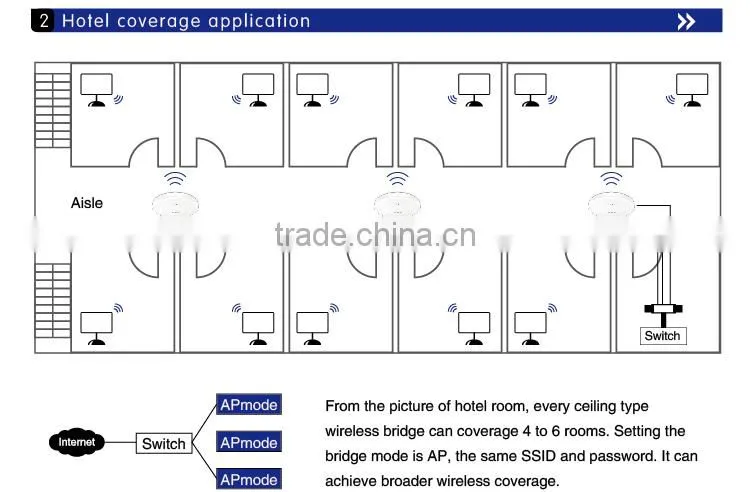

Application Case

Our device can be used by many environment,such as traffic monitoring,schools,constructional engineering.......



High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN



High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN

About our company



High Power 300Mbps Ceiling AP WiFi Router Wireless Access Point Router Ceiling Mount PoE and VLAN



For firmware download and more products,please copy and open this website:
