General Description

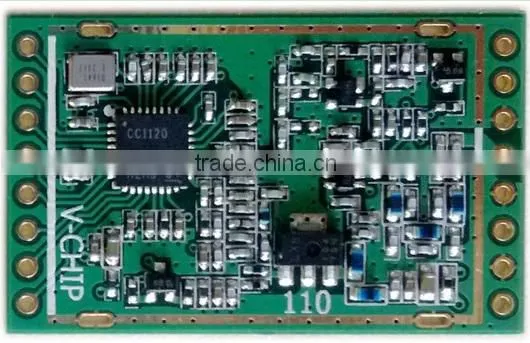

VT-CC1120PL-433M is based on RF Transceiver CC1120 of TI Chipcon,CC1120 is fully integrated single-chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. Added PA, LNA circuit, enhanced output power and sensitivity.The module integrated many RF functions thus you can use it conveniently and reducing your development time.
Features
433MHz wireless transceiver, Frequency bands at 169M/868M/915M/950MHz be customized
Programmable baseband modulator with 2-FSK, 2-GFSK, 4-FSK,4-GFSK,MSK,OOK/ASK
3.3V , max power +26 dBm
Transmit distance reached 5000 meters, and sensitivity reached -125dBm when setting is 1.2kbps, DEV=4KHz, RX BW=25KHz
Powerful signal processor, deal with strong signal very clear.
Programmable data rate to 200Kbps
Low power consumption and operating supply voltage:2.0~3.6V DC
Point to point and point to multi-point communication.
Support carrier wave and digital RSSI output.
Separate 128-byte RX and TX FIFOs
High stability and industrial reliability
Small dimension:23.05mm×15.06mm×1.8 mm
Applications
Wireless Metering and Wireless Smart Grid (AMR and AMI)
Logistics Tracking System, Warehouse patrol, Electronic label
Industrial monitoring and control
AMR – Automatic Meter Reading
Home and building automation
Consumer Electronics products of wireless control
Wireless alarm and security systems
Wireless sensor networks
General Characteristics
Test operating conditions:
Ta=25°C,VCC=3.3V if nothing else stated.
Parameter Type Condition/Note
Operating supply voltage DC 2.0~3.6V
Frequency range 410-480MHz Programmable
Frequency accuracy ±10ppm
Modulation format 2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOK Programmable
Transmit power MAX:26dBm(3.3V) Programmable
TX current consumption ≤250mA
Receiver sensitivity -125dBm(1.2kbps DEV=4KHz RX BW=25KHz) Refer to data rate
RX current consumption ≤25mA
Sleep State current consumption <1uA
Transmit distance 5000M
Antenna impedance 50ohm
Operating voltage 3.0~3.6V
Operating temperature -20~+75 °C
Storage temperature range -40~+125°C
Dimension 35.8*22.2*4.0mm See more in PCB description
