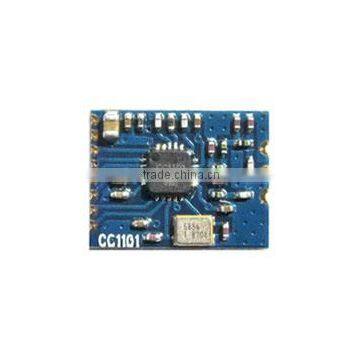

Simple cheap wireless receiver wireless module 433M module
- 10000 Piece / Pieces per Month
- shekou
- Credit Card
Product Details
D/C: | 2016-04-01 | Package: | SPI | Model Number: | VT-CC113L-433 |
Type: | Other | Brand Name: | China | Place of Origin: | Guangdong, China |
Product Description
General Description
VT-CC113L-433M is based on RF Transceiver CC113L of TI Chipcon,it’s a small size and ultra low power UHF wireless module. CC113L is a low cost true single chip UHF transmitter designed for very low power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868 and 915 MHz with data rate as high as 600Kbps. The module integrated many RF functions thus you can use it conveniently and reducing your development time.
Features
433MHz transceiver, frequency at bands 387~464MHz can be customized
Programmable baseband modulator with 2-FSK/4-FSK/GFSK/OOK
Programmable output power from -20 to +10dBm
High receiver sensitivity down to -116dBm(at 0.6Kbps data rate)
Programmable data rate 0.6~600kbps
Low current consumption with DC 1.8~3.6V supply voltage
Point to point, point to multipoint communication
Support carrier sense and digital RSSI output.
Get higher performance RF system when operation with MCU
High stability and reliability up to industrial standards
SPI interface
Small dimension: 19.0mm×17.0mm×2.4 mm
Applications
Work with CC115L transmitter to make up a low cost application
Industrial monitoring and control in data acquisition
Home and building automation
Consumer Electronics products of wireless control
Wireless alarm and security systems
Wireless sensor networks
General Characteristics
Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.
Parameter Type Condition/Note
Operating supply voltage DC 1.8~3.6V
Central frequency 433MHz Can be programmable to other frequency at bands 387~464MHz
Frequency accuracy ±10KHz
Modulation format 2-FSK/4-FSK/GFSK/OOK Programmable
Receiver sensitivity -110dBm 2.4Kbps
RX current consumption ≤20mA 2.4Kbps
Sleep State current consumption <1uA Refer to IC operation states
Data rate 0.6~600kbps Programmable
Communication distance >200m CC113L as a transmitter, 2-FSK modulation, 1.2kBaud data rata, +10dBm output power.
Antenna impedance 50ohm
Operating temperature -20~+75 °C
Storage temperature range -50~+125°C
Dimension 19.0 mm×17.0 mm×2.4mm See more in PCB description
Note:
1.The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the distance, and the lower the receiving sensitivity.
2.The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the voltage, the lower the TX power.
3.The module central frequency will change as the operating temperature change, use it under suggest temperature, the module can work well.
4.The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly.
5.The module mount will affect the communication distance.
PCB Description
Pin Configuration
Pin name Pin type Description
3.3V Power(Analog) 1.8 V - 3.6 V analog power supply connection.
GND Ground Connect to the system ground.
SI Digital Input Serial configuration interface, data input.
SCLK Digital Input Serial configuration interface, clock input.
SO Digital Output Serial configuration interface, data output.
Optional general output pin when CSN is high.
GDO2 Digital I/O Programmable Clock output, down-divided from XOSC
GDO0 Digital I/O Programmable Clock output, down-divided from XOSC.
CSN Digital Input Serial configuration interface, chip select, active low.
ANT RF I/O RF output signal from PA, connect to the Antenna.
