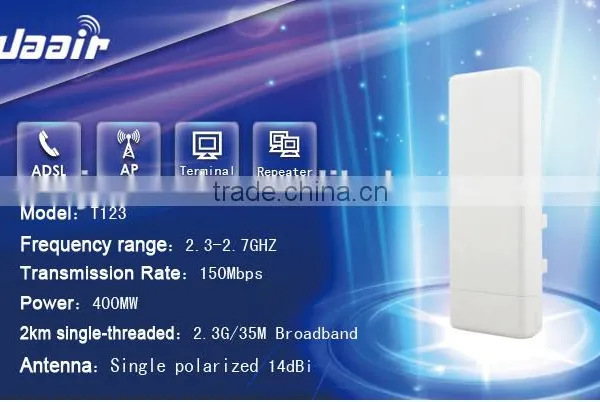

2016 New 2.4 GHz, Outdoor AP/CPE/repeater/WDS/ADSL 14 DBi Integrated Antenna

Name: 2016 New 2.4 GHz, Outdoor AP/CPE/repeater/WDS/ADSL 14 DBi Integrated Antenna
Brand: Topda
SKU: 128976355

US$ 25 - 35 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Topda

Model Number:

T123

Jiangmen Topda Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Guangzhou Jiangmen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Topda

Model Number T123

300mbps 3km wifi range wireless bridge cpe network routers

Introduction

1.Using Atheros 9 series chipset,600Mhz frequency and 128M RAM,which stand for high level of the wireless industry.

2.Powerful Todacore firmware system,easy to set-up,can choose 2.3-2.7G(4-6G),avoid from any disturb easily,

get faster speed and better quality of communication.

Features

1. Indicator light indicates work state,small size, conveient and flexible installation.

2. Dual-network port POE power supply.

3. 3 antenna system, higher bandwidth.

4. Powerful radiator make the work of the board to maintain optimal state.

5. It's a CPU which have 8M FLASH 32M memory and 400MHz,it's a hardware platform to make it more stable

and high-performance.

Specification

Hardware specification
ATHEROS AR9341 600MHZ CPU 8M FLASH
Frequency Bands	2.3~2.7GHz
RF Output Power	24dBm
Modulation Mode	DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM
Sensitivity	300M:-68dBm@10% PER;	270M:-68dBm@10% PER;
	130M:-68dBm@10% PER	108M: -68dBm@10% PER
	54M: -68dBm@8% PER	11M: -85dBm@8% PER
	6M: -88dBm@8% PER	1M: -90dBm@8% PER
Data and operating parameters
Automatic rate selection	802.11n:6.5-144.44Mbps
	802.11b:11/5.5/2/1Mbps
	802.11g:108/54/48/36/24/18/12/9/6Mbps
Standard	IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE 802.3u,IEEE 802.3af
Support Protocols	CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Size and environmental
Environmental		Physical performance
Weight	0.47kg/0.54kg(packing)	Operation Temperature	-30~65°C
Size	2559060mm	Storage Temperature	-50~80°C
Packing	285130100mm	Storage Humidity	≤95%(non-condensation)
Management
Web management	Yes
SNMP MIB	Yes
Telnet	Yes
Security
MAC control	Yes
encryption	WEP key 64/128 bits,WPA,WPA2,802.1x
Antenna System
Frequency Band(Mhz)	2300-2700
Polorization	Horizontal,Vertical
Increase Ratio(DBi)	14DB
