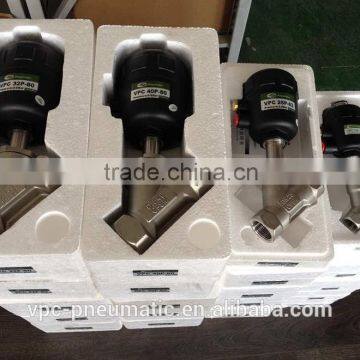

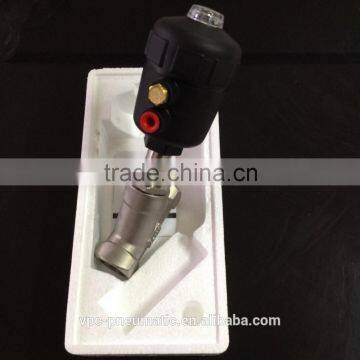

Help CenterNormal Open Angle Seat Valves With Plastic Actuator
Related Products
-
PU220-04 AC220V 2/2 Way Water Solenoid ValveUS$ 11.8 - 11.8MOQ: 5 Pieces -
2 Position 5 Port 4M Series Numur Solenoid Valve 4M210-08US$ 4.5 - 4.5MOQ: 100 Pieces
-
Y-type Plastic Angle-Seat ValveUS$ 26.5 - 26.5MOQ: 10 Pieces
-
2 Way Full Stainless Steel Angle Seat Valve With Pneumatic ActuatorUS$ 48.5 - 48.5MOQ: 10 Pieces
-
15mm Micro Solenoid Valve for Sock Knitting MachineUS$ 2 - 10MOQ: 50 Pieces
Angle seat valves's Summary:
- Compact in size and lightweight.
- Long service life, economical investment.
- Large flux, small flux resistance, no water hammer.
- Stem automatic correction, self-lubrication, maintenance free.
Angle seat valves's Specifications:
| Control type | Normal closed,normal open,double acting |
| Cylinder material | stainless steel, polyamide PA |
| Pneumatic accessories | Limit switch, locator, solenoid valve, filter relief-pressure valve, manual operating device |
| Medium temperature | PTFE:-30~180℃ F46:-30~+220℃ |
| Environment temperature | -30~80℃ |
| Nominal pressure | 1.0~1.6MPa |
| Nominal diameter | DN10-50-80mm |
| Connection type | Thread,Flanged, Clamp, Welded |
| Body construction | One-piece, Y-type |
| Body material | 304,316, 316L |
| Spool pressure | 304,316, 316L |
| Seal material | PTFE,F46 |
| Applicable medium | Steam, water, air, oil etc. |
Angle seat valves's installation and disassembly :
1. Based on concrete conditions select the valve installations direction
2. Installation charge of road should be cleaned to ensure no impurites or medium welding slag, so as not to damage the valves, causing leakage.
3. Install welded vavle, be sure to detach the valve actuator
4. Select the appropriate adjustment range of the regulator
5. Ensure that the air pressure range sufficient capacity
6. Check to ensure seal integrity of the connection
7. Valve repair or replacement, the demolition of the body and the connecton in the room temperature, the valve under the state open to avoid damage to the thread
8. Installation and connection in the body the threads coated with a small amount of thread grease, and tighten
We also supply the full stainless steel angle seat valves, more information, welcome to contact with me, or visit our website:, thank you
