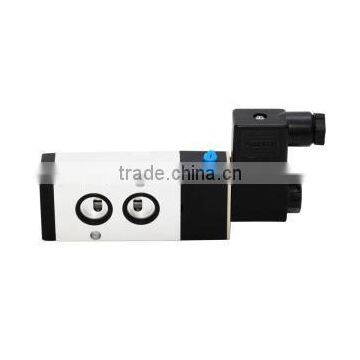

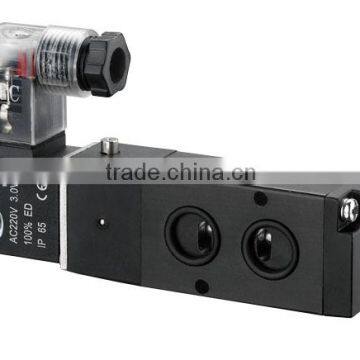

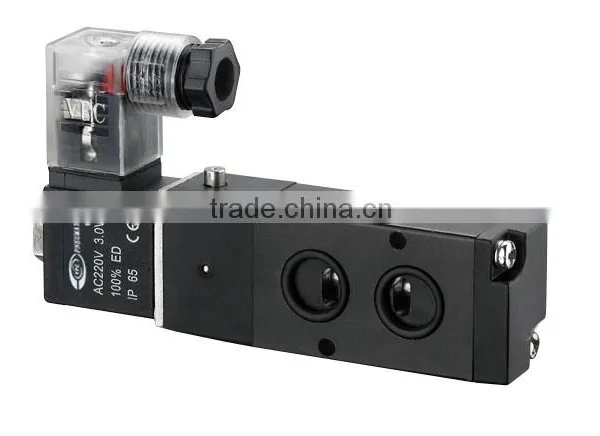

2 Position 5 Port 4M Series Numur Solenoid Valve 4M210-08
US$ 4.5 - 4.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pilot
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Y-type Plastic Angle-Seat ValveUS$ 26.5 - 26.5MOQ: 10 Pieces -
2 Way Full Stainless Steel Angle Seat Valve With Pneumatic ActuatorUS$ 48.5 - 48.5MOQ: 10 Pieces
-
15mm Micro Solenoid Valve for Sock Knitting MachineUS$ 2 - 10MOQ: 50 Pieces
-
Manifold Base for 15mm NC Solenoid ValveUS$ 0.8 - 20MOQ: 50 Pieces
-
10mm Miniature Solenoid Valve for Sock Knitting MachineUS$ 2 - 10MOQ: 50 Pieces
Standard or Nonstandard
Standard
Structure
Pilot
Pressure
Medium Pressure
Power
Solenoid
Material
Other, Alloy, Aluminum
Temperature of Media
Medium Temperature
Media
Other, Clean Air
Port Size
1/4"
Place of Origin
Zhejiang, China
Model Number
4M210-08 Numur Solenoid Valve
Brand Name
VPC Numur Solenoid Valve 4M210-08
Application
Other, Pneumatic Actuators
2 Position 5 Port 4M Series Numur Solenoid Valve 4M210-08 's Summary:
4M Series Numur Solenoid Valve is suitable to operate pneumatic actuators. It can be directly mounted on the supply side of the actuator without using other accessories pipes and plates. This solenoid valves can be used as a 5 way for double acting actuators or as 3 way for spring return actuators.
The standard color for the Namur valves are painted in black color and the plastic button is black, with VPC's coil. We also do grey painting, hard anodization, natural anodization for the body, and the plastic button we also have blue, red, etc.
Body and spool of aluminium alloy
- Different colors are optional for body
- Precise dimensions and nice appearance
- Stable life cycle, guaranteed 5, 000, 000 times

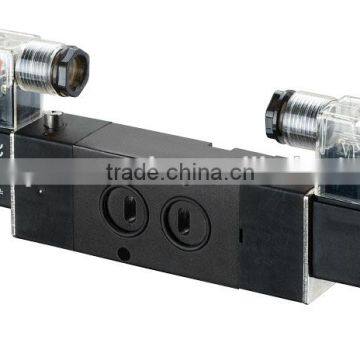

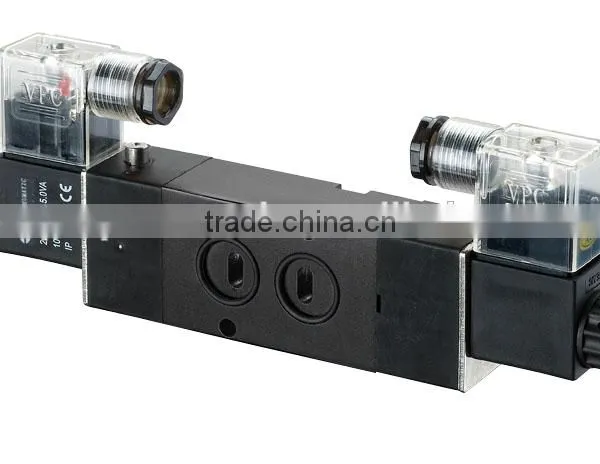

- Available with single and dual coil versions
- Coil & Connector Sold Separately
- Customer specific labelling available on request.
2 Position 5 Port 4M Series Numur Solenoid Valve 4M210-08 's Specifications:
| Type | 4M110-M5 | 4M120-M5 | 4M110-06 | 4M120-06 | 4M210-06 | 4M220-06 | 4M210-08 | 4M220-08 | 4M310-08 | 4M320-08 | 4M310-10 | 4M320-10 | ||
Working medium |
Air (filtered by 40 m filtering net) | |||||||||||||
| Action type | Inner pilot type | |||||||||||||
| Position no. | Five-way two-position | |||||||||||||
| Effective sectional area | 5.5mm²(Cv=0.31) | 12mm²(Cv=0.67) | 14mm²(Cv=0.78) | 16mm²(Cv=0 .89) | 25mm²(Cv=1.4) | 30mm²(Cv =1.68) | ||||||||
| Pipe dia. | Air inlet=Exhaust=M5 | Air inlet=Exhaust=PT1/8 | Air inlet=Exhaust=PT1/8 | Air inlet=PT1/4 Exhaust=PT1/8 | Air inlet=Exhaust=PT1/4 | Air inlet=PT3/8 Exhaust=PT1/4 | ||||||||
| Lubricating | Not need | |||||||||||||
| Applicable pressure | 0.15~0.8MPa(21~114Psi) | |||||||||||||
| Max withstand pressure | 1.2MPa(170Psi) | |||||||||||||
| Working temperature | -5~60 (23~140 F) | |||||||||||||
| Voltage range | -15%~+10% | |||||||||||||
| Power consumption | AC: 2.5VA DC: 2.5W | AC: 3.5VA DC: 2.5W | ||||||||||||
| Thermal endurance class | B | |||||||||||||
| Protection degree | IP65(DIN40050) | |||||||||||||
| Type of electrification | Terminal type and wire outlet type | |||||||||||||
| Max action frequency* | 4 | |||||||||||||
| Excitation time | 0.05 | |||||||||||||
| Weight | 120g | 175g | 120g | 175g | 220g | 320g | 220g | 320g | 310g | 400g | 310g | 400g | ||
*Note The max action frequency is in the no-load state.
