Specifications
1. vacuum packaging machine;2. brick type vacuum bag;
3. for coffee powder ,dry yeast powder,granular and so on;
All about our Company
1- Anhui Zengran Machinery Automation Co.,Ltd is a high and new technology enterprise
which specialized in R&D and manufacture automatic packaging machine since 1995.
2- Specialized in 1kg-50kg powder & granule automatic bag packaging machine, secondary
packaging machine (small bags into big bag), bags/battles into box line Robot Palletizer,
automatic packing and packaging line, bag-sewing machine.
WELCOME TO VISIT OUR COMPANY !!!
Specific included accessories

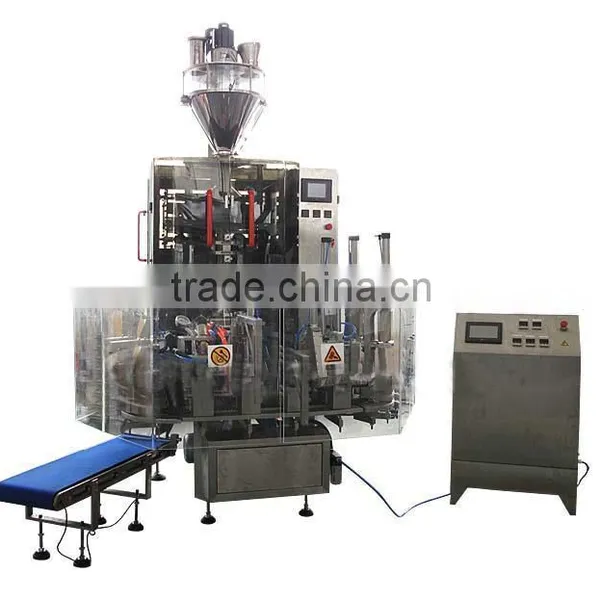

VFS5000F packaging machine
· Machine fully controlled by Siemens or Omron PLC & Touch-Screen
· Minute capacity can automaticlly display on Touch screen
· Film transport system and horizontal Jaw motion both drived by Panasonic
· Safe quick change of tube and collar by just pull out the braket
· Optoelectronics detect film position on collar to correct film excursion
· Electrical photo sensor inducting color code to contol bag length
· Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
· Independent temperature adjustment.
· Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.
· The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt
CJSL2000 Auger filler
Servo motor control auger filling
Can be detached for easy clean
Simple and compact in design
All stainless steel product contact parts. Non-contact parts are stainless steel and aluminum
ZB1000 Vacuum &bag bag reshape system
· Auto Vibrate, Form, Vacuum & Reseal Brick Bag
· Stable working with SIEMENS PLC, Panasonic Servo Drive,
Machine working Steps:
Get bag from VFZ series: vertical form fill & seal machine - Vibrate the bag - Form the bag shape - Vacuum & seal bag - Output bag
Main technical parameters
Bag type:Vacuum & Reseal Brick Bag
Maximum Capacity:up to 2 kilograms( need change auger & tube according to different weighting range )
Minimum Capacity:depend on product characteristics but nominally 5 grams
Speed:8-20(times/min) dependant on products characteristics and weighting range
Hopper capacity:50Litres
Weighing accuracy:±0.2% dependant on products characteristics
Bag Length:50 to 340mm (2.0 to 13.4in)
Bag Width:80 to 260mm (3.1 to 10.3in)
Reel Film Width:≤540mm (21.2in)
Film thickness:0.04-0.12mm (40-120mic.)
Reel Outer Dia.:400mm (15.7in)
Reel Inner Dia.:75mm (2.9in)
Voltage:AC220V/50Hz, 1phase or Per customer specification
Power Consumption:
VFS5000F packaging machine 3KW
CJSL2000 Auger filler:1.2kw
ZB1000 Vacuum &bag bag reshape system:5.5KW
Compressed Air Requirement:0.6 MPa0.36 M3min
powder vacuum packing machine
Machine Size
VFS5000F packaging machine:L1650 x W1140 x H1650mm; (in):L65.1 X W44.9 X H64.9
CJSL2000 Auger filler:L1000 X W950 x H2200mm; (in):L39.4 X W37.4 X H86.6
ZB1000 Vacuum & bag reshape system:L3125 × W 660 × H 1050 mm; (in): L 123.03 × W 25.98 × H 41.34
Machine Weight:
VFS5000F packaging machine 800kg
CJSL2000 Auger filler:250kg
ZB1000 Vacuum & bag reshape system:600kg
coffee vacuum packing machine

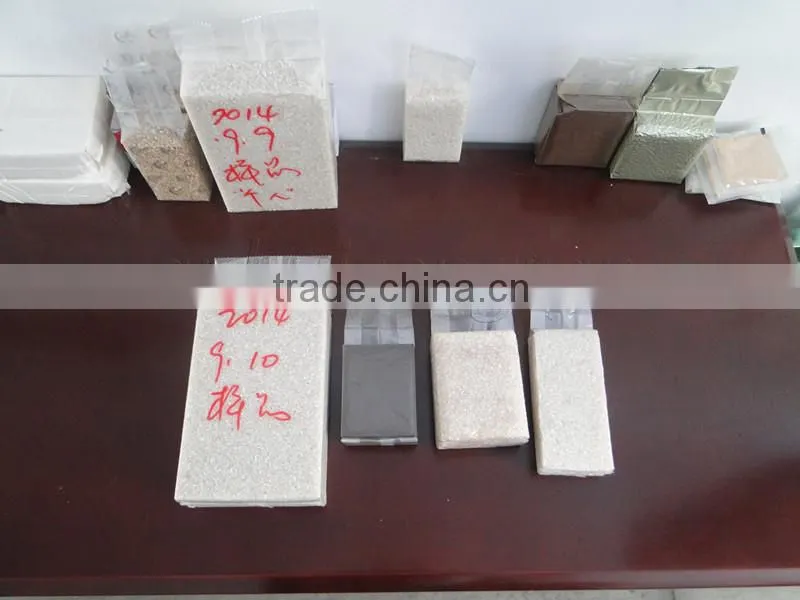

Bag sample
yeast vacuum packing machine
Our factory workshop
high quality flour vacuum packing machine
Our customers‘ case
Our certification
After-sales service
a) Above unit include the equipments for one year spare parts, delivery along with equipment;
b) We will provide detailed User Manual, Installation Guide in English;
c) If you need our engineer to go abroad to install the equipments, you should pay round trip the transportation expenses, local board and lodging expenses and also the USD 50 wages for our engineer per day.
Thank you for your quotation and we will provide you best service as long as we can!
