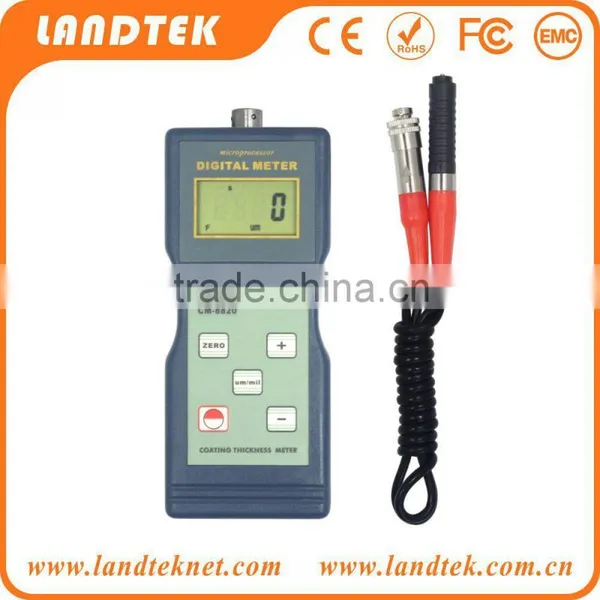

COATING THICKNESS METER
Size:CM-8820
Applications:
Measure the thickness of coating on the base.
Used for measuring thickness and corrosion of:
*Pressure vessels,chemical equipment,boilers.
*Oil storage tanks,etc.in industries of petroleum.
*Shipbuilding,power station,and machine manufacturing.
Features:
Measuring method:F probe
Coating:
*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.(non-magnetic materials)
*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
Base:iron, nickle etc.(magnetic materials)
Details:
| Operating Principle | Magnetic Induction ( F ) |
| Measuring Range | 0~2000 um |
| Resolution | 0.1 um / 1 um |
| Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm |
| Min. Measuring Area | 6 mm |
| Min. Sample Thickness | 0.3 mm |
| Accuracy | ± 1~5%n or ±5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply | 4 x 1.5 V AA (UM-3) Battery |
| Dimensions | 161 x 69 x 32 mm |
| Weight | 210 g (Not Including Batteries) |
Accessories:
Standard Accessories:
1. Main Unit
2. Probe ( F Type )
3. Calibration Base Set ( F Type ) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
Other range 0~200um to 15000um
carton, via ocean/land/air
Quality assurance for one year,and forever maintainence.
