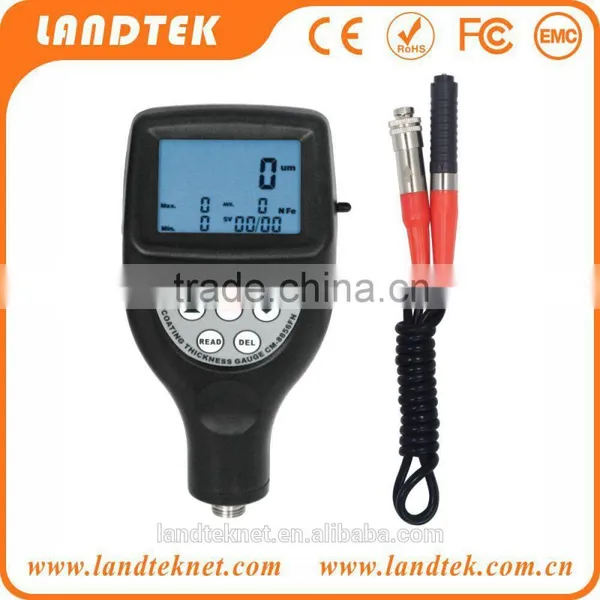

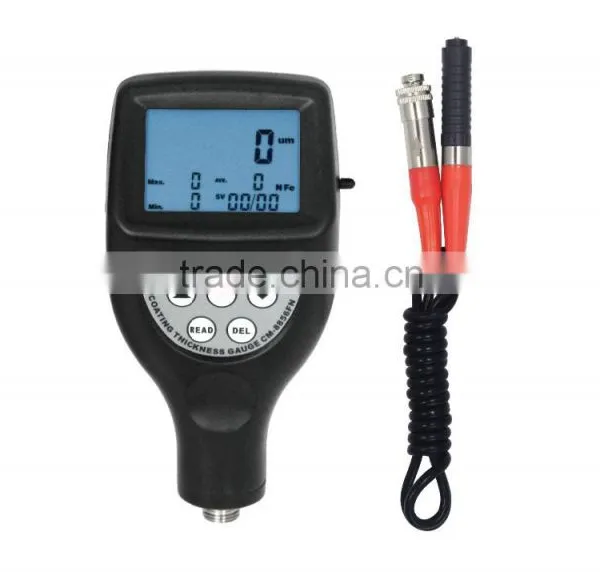

Help CenterElectronic Coating Thickness Meter( Statistical Type )CM-8856
Related Products
-
Standard Type Coating Thickness Gauge CM-8826FNUS$ 0.01 - 1MOQ: 1 Piece -
Portable Coating Thickness Meter CM-8855NegotiableMOQ: 1 Unit
-
Micro Coating Thickness Meter CM-1210-200N 0~200 um / 0~8milUS$ 300 - 450MOQ: 1 Piece
-
Micro Coating Thickness Meter CM-1210-200F 0~200um/0~8 MilUS$ 300 - 450MOQ: 1 Piece
-
Plating Thickness Tester for Vehicle CM-8828 0~1250 Um/ 0~50 MilUS$ 165 - 250MOQ: 1 Piece
Applications:
Type |
Applications |
|
|
Base |
Coating |
F probe |
iron, nickle etc. |
paint, plastic, porcelain enamel, copper, zinc, aluminium, alvanizing, |
NF probe |
aluminum, brass, non-magnetic stainless steel, etc |
anodizing, varnish, paint, enamel, |
Features
*Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure thecoating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Details
| Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
| Measuring Range | 0~1250 um / 0~50 mil |
| Resolution | 0.1 um / 1 um |
| Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
| Min. Measuring Area | 6 mm |
| Min. Sample Thickness | 0.3 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply | 2 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 126 x 65 x 35 mm |
| Weight | 81 g (Not Including Batteries) |
carton, via ocean/land/air
Quality assurance for one year,and forever maintainence.
