Logging Cable , 4 Conductor Cable, 3/16" Cable
Well Logging Armoured Cable

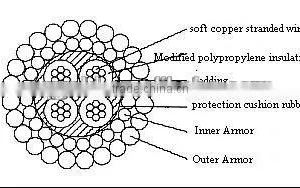

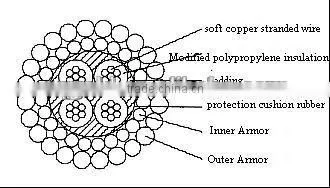

Construction:
1.Copper Construction: 6×0.20+1×0.21 mm 6×0.0078+1×0.0082"
2.Insulation PP : 0.19 mm 0.00748"
3.Protection: 3.00 mm 0.118"
4.Armor: (Inner) 18×0.47 mm(324N) 12×0.0185"(72.8lbs)
(Outer) 18×0.64 mm(601N) 18×0.0251"(135lbs)
Physical:
1.Cable Diameter: 4.70mm±0.10mm 0.18″±0.0039″
2.Cable Weight in Air: 85 kg/km 57.4 lbs/kft
3.Temp Rating: 150 °C 300 °F
Mechanical:
1.Cable Breaking Strength: 13 kN 2900 lbs
2.Minimum Shave Diameter: 260 mm 10.5″
3.Cable Stretch Coefficient: 4.78 m/km/5kN 4.25 ft/kft/klbs
Electrical:
1.Voltage Rating: 200 VDC 200 VDC
2.Insulation Resistance: 500 MΩ·km 1500 MΩ·kft
3.Resistance Typical: 84.3 Ω/km 25.6Ω/kft
4.Capacitance @ 1 kHz: 190 pf/m 58 pf/ft
