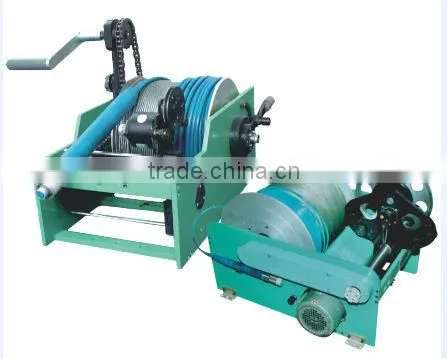

2000m Well Logging Wireline Winch For Geological Use, Well Log Winch

Name: 2000m Well Logging Wireline Winch For Geological Use, Well Log Winch
Brand: gold
SKU: 128892479

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

gold

Model Number:

2000m Well Logging Wireline Winch For Geological Use

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHONGQING

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name gold

Model Number 2000m Well Logging Wireline Winch For Geological Use

JCH Series Automatic Cabe Winding Winch with the Automatic constant speed and manual speed control, automatic overload protectio

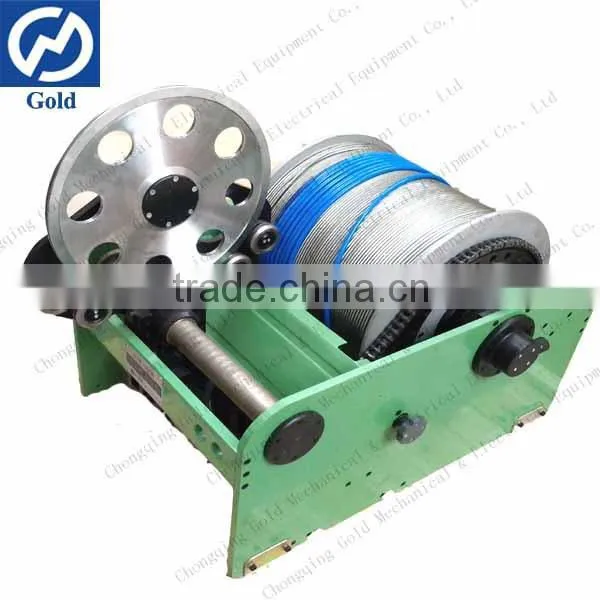

JCH Series Automatic Cabe Winding Winch

Main Applications and Features

1 Adopt advanced frequency conversion technology to control the winch

2 Automatic constant speed and manual speed control, automatic overload protection

3 Automatic addition and subtraction to calculate the depth, with depth error automatic compensation.

4 Use of commercial power or AC power generator

5 Self-locking function while winch ascending and descending

6 Steady in velocity without jitter in full speed range

Technical Specifications

1. Speed Range: 1~29.9 m/min

2. Depth Error: ≤0.4‰

3. Depth Range: 0~9999.99 m

4 Power Supply: AC220V±10% 50Hz ±5%

5. Continuous Working Time: ≤24 hr

6. Depth Pulse Equivalent: 0.25mm/pulse

7. Working Temperature: -10°C~ +70°C

8. Volume: 305×200×220mm,

9. Weight: <3kg

10. Power Consumption: <1.5kW

11. Constant Speed Range: 0.5~20m/min, Error: ±10%, ±1 digit

Main Parameter Table for Winch Series

Parameters	3000meters frequency control	2000meters frequency control winch	1000meters frequency control winch	300meters frequency control	500meters frequency control winch
type	JCH-3000	JCH-2000	JCH-1000	JCH-300	JCH-500
Dimensions	940×800×720	920×680×700	710×620×670	560×490×360	540×400×380
Weight	150 kg	120 kg	110 kg	25 kg	18 kg
Motor Power	2.2 kw	1.5 kw	1.1 kw	manual	manual
Pulse Number	1 circle per 4000	1 circle per 4000	1 circle per 4000	1 circle per 4000
Reelable Length	3100 M	2200 M	1200 M	360 M	700 M
Reelable Length	3100 M	2200 M	1200 M	360 M	370 (Φ7mm rubber cable)
Core Number	6 core	6 core	6 core	6 core	6 core
