Specifications
SS Sanitary Capillary Tube1)high precision
2)surface:smooth,bright
3)quick delivery
4)grade:201,304,316,316L...
SS Sanitary Capillary Tube
We are a professional high tech enterprise based in Nanjing, enjoying convenient transportation access. We are fully committed to producing many kinds of technologically advanced stainless steel products. In addition, we are authorized by China Railway Group Limited, Zhejiang Supor Co., Ltd., Sinoma Science & Technology Co., Ltd., etc. to be their main distributor in China.
stainless steel sanitary Capillary
Name |
S.S. Sanitary Capillary Tube |
|||||
Standard |
ASTM A554, A312, A249, A269 and A270 |
|||||
Material Grade |
304,316,201,202, 316L,430 |
|||||
Size Range |
1) Outer diameter:≥1mm 2) Wall thickness: ≥0.4mm |
|||||
Length |
6m or as customers' request |
|||||
|
Tolerance |
a) Outer Diameter: +/-0. 15mm |
|||||
b) Thickness: +/- 0.02mm | ||||||
c) Length:+/-4. 5mm - 0mm | ||||||
Surface |
180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish |
|||||
Application |
Ornamental tubes, Decoration construction, upholstery, industry instruments |
|||||
Test |
Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT |
|||||
|
Chemical Composition of Material |
Composition
Material |
201 |
202 |
304 |
316 |
430 |
C |
≤0.15 |
≤0.15 |
≤0.08 |
≤0.08 |
≤0.12 |
|
Si |
≤1.00 |
≤1.00 |
≤1.00 |
≤1.00 |
≤1.00 |
|
Mn |
5.5-7.5 |
7.5-10 |
≤2.00 |
≤2.00 |
≤1.00 |
|
P |
≤0.06 |
≤0.06 |
≤0.045 |
≤0.045 |
≤0.040 |
|
S |
≤0.03 |
≤0.03 |
≤0.030 |
≤0.030 |
≤0.030 |
|
Cr |
16-18 |
17-19 |
18-20 |
16-18 |
16-18 |
|
Ni |
3.5-5.5 |
4-6 |
8-10.5 |
10-14 |
|
|
Mo |
|
|
|
2.0-3.0 |
|
|
|
Mechanical Property |
Material Item |
201 |
202 |
304 |
316 |
|
Tensile Strength |
≥535 |
≥520 |
≥520 |
≥520 |
||
Yield Strength |
≥245 |
≥205 |
≥205 |
≥205 |
||
Extension |
≥30% |
≥30% |
≥35% |
≥35% |
||
Hardness (HV) |
<253 |
<253 |
<200 |
<200 |
||
Grade 200,300,400 series
Application: medical,ball point pen air conditioner,etc
1) Standard: ASTM,JIS,DIN,GB,EN
2) Outer diameter:≥1mm
3) Wall thickness: ≥0.24mm
4) Tolerance:
A) Outer diameter: +/-0. 15mm
B) Wall Thickness: +/-11%
C) Length: +/-4. 5mm - 0mm
5) Material: 304, 304L, 316, 316L,317, 321, 409, 430 etc.
We can also make according to customer required.
phone number:86-25-66927689
My pleasure to solve your problem.

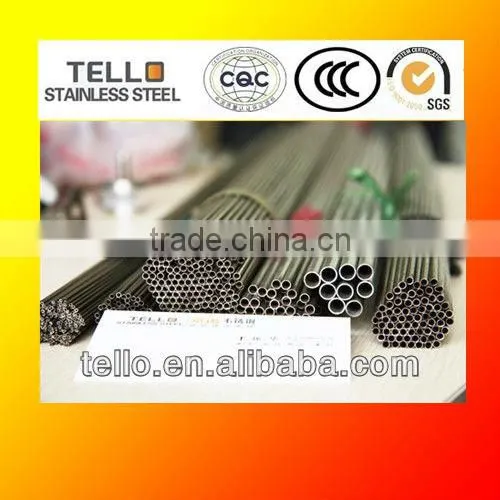

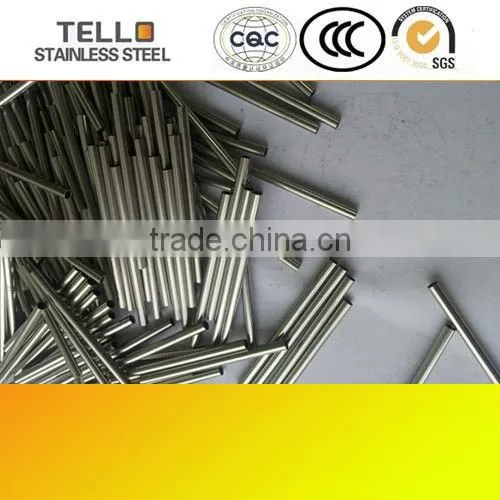

Samples display:

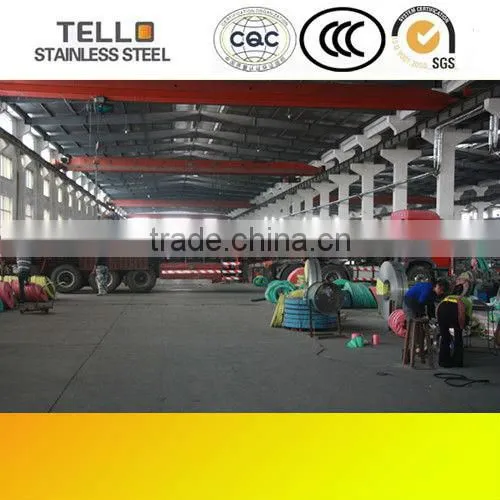

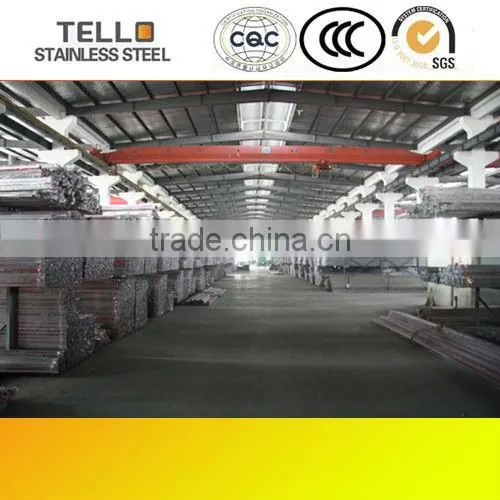

Workshop:

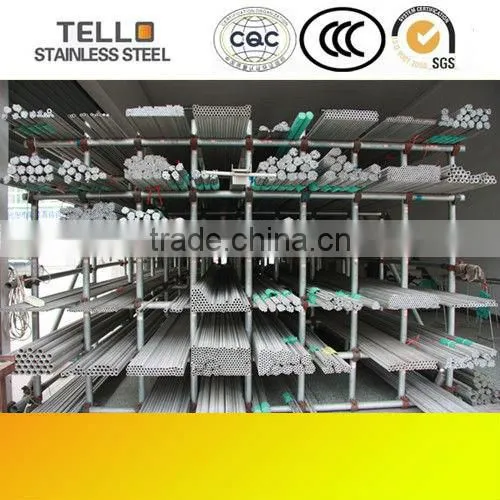

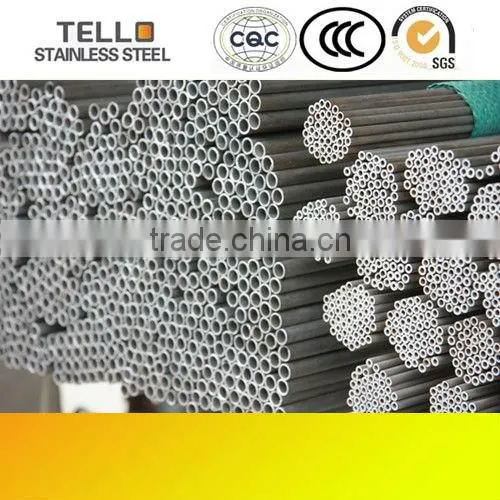

Stock:
