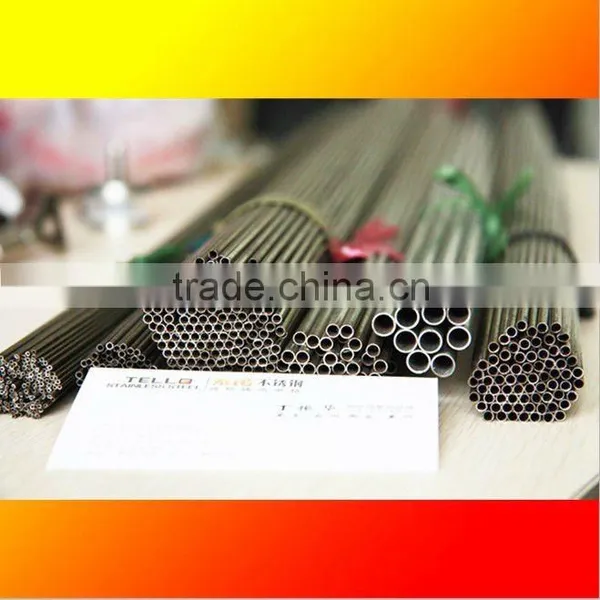

Stainless Steel Capillary Tube (for Medical Usage)

Name: Stainless Steel Capillary Tube (for Medical Usage)
Brand: Tello
SKU: 128855519

US$ 0.05 - 2.5 MOQ: 1000 Meters

Key Specifications

Standard:

JIS, AISI, ASTM, GB, DIN, EN

Place of Origin:

Jiangsu, China

Brand Name:

Tello

Nanjing Yuhuatai Tello Stainless Steel Products Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Standard JIS, AISI, ASTM, GB, DIN, EN

Place of Origin Jiangsu, China

Brand Name Tello

Model Number standard

Type Welded

Steel Grade 300 Series

Application Medical Device Industry injection ...

Certification ISO

Welding Line Type ERW

Thickness 0.2-0.35mm

Outer Diameter 2-7mm

Specifications

Stainless Steel Capillary Tube (for medical usage)
1)Diameter:0.5mm-10mm
2)Surface:smooth,bright
3)Grade:201,304,316,316L.etc

Tello Stainless Steel Capillary Tube (for medical usage)

Name	Stainless Steel Capillary Tube (for medical usage)
Standard	ASTM A554, A312, A249, A269 and A270
Material Grade	304,316,201,202, 316L,430
Size Range	1) Outer diameter:≥1mm 2) Wall thickness: ≥0.4mm
Length	6m or as customers' request
Tolerance	a) Outer Diameter: +/-0. 15mm
	b) Thickness: +/- 0.02mm
	c) Length:+/-4. 5mm - 0mm
Surface	180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish
Application	Ornamental tubes, Decoration construction, upholstery, industry instruments
Test	Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT
Chemical Composition of Material	Composition Material	201	202	304	316	430
	C	≤0.15	≤0.15	≤0.08	≤0.08	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	16-18	17-19	18-20	16-18	16-18
	Ni	3.5-5.5	4-6	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<253	<253	<200	<200
