Specifications

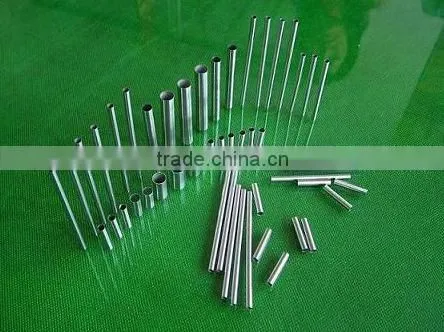

316 Stainless Steel Capillary Tube1)High precision
2)Surface:smooth,bright
3)Grade:201,304,316,316L.etc
4)ISO,SGS
316 Stainless Steel Capillary Tube
Name |
316 Stainless Steel Sanitary Capillary Tube |
|||||
Standard |
ASTM A554, A312, A249, A269 and A270 |
|||||
Material Grade |
304,316,201,202, 316L,430 |
|||||
Size Range |
1) Outer diameter:≥1mm 2) Wall thickness: ≥0.4mm |
|||||
Length |
6m or as customers' request |
|||||
|
Tolerance |
a) Outer Diameter: +/-0. 15mm |
|||||
b) Thickness: +/- 0.02mm | ||||||
c) Length:+/-4. 5mm - 0mm | ||||||
Surface |
180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish |
|||||
Application |
Ornamental tubes, Decoration construction, upholstery, industry instruments |
|||||
Test |
Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT |
|||||
|
Chemical Composition of Material |
Composition
Material |
201 |
202 |
304 |
316 |
430 |
C |
≤0.15 |
≤0.15 |
≤0.08 |
≤0.08 |
≤0.12 |
|
Si |
≤1.00 |
≤1.00 |
≤1.00 |
≤1.00 |
≤1.00 |
|
Mn |
5.5-7.5 |
7.5-10 |
≤2.00 |
≤2.00 |
≤1.00 |
|
P |
≤0.06 |
≤0.06 |
≤0.045 |
≤0.045 |
≤0.040 |
|
S |
≤0.03 |
≤0.03 |
≤0.030 |
≤0.030 |
≤0.030 |
|
Cr |
16-18 |
17-19 |
18-20 |
16-18 |
16-18 |
|
Ni |
3.5-5.5 |
4-6 |
8-10.5 |
10-14 |
|
|
Mo |
|
|
|
2.0-3.0 |
|
|
|
Mechanical Property |
Material Item |
201 |
202 |
304 |
316 |
|
Tensile Strength |
≥535 |
≥520 |
≥520 |
≥520 |
||
Yield Strength |
≥245 |
≥205 |
≥205 |
≥205 |
||
Extension |
≥30% |
≥30% |
≥35% |
≥35% |
||
Hardness (HV) |
<253 |
<253 |
<200 |
<200 |
||
stainless steel sanitary Capillary
Grade 200,300,400 series
Application: medical,ball point pen air conditioner,etc
1) Standard: ASTM,JIS,DIN,GB,EN
2) Outer diameter:≥1mm
3) Wall thickness: ≥0.24mm
4) Tolerance:
A) Outer diameter: +/-0. 15mm
B) Wall Thickness: +/-11%
C) Length: +/-4. 5mm - 0mm
5) Material: 304, 304L, 316, 316L,317, 321, 409, 430 etc.
We can also make according to customer required.
