Specifications
PV panel / solar moduleCE Certification has approved
high quality with reasonable price
10years guarantee
energy saver

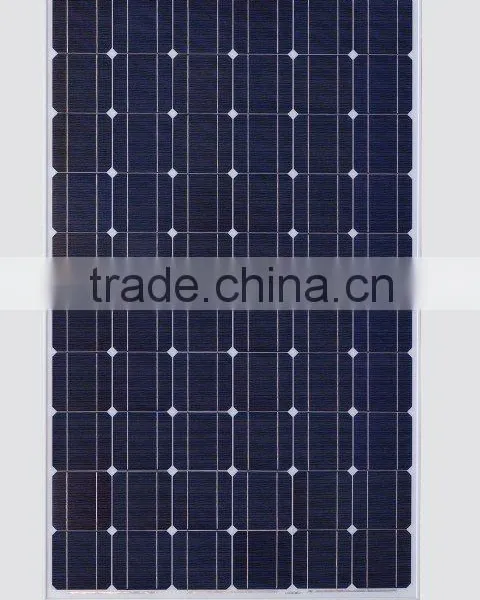

Monocrystalline Solar Panel (225W~250W)
Welcome any OEM order
Features
- high conversion efficiency based on innovative photovoltaic technologies
- Withstand high wind-pressure and snow load, and extreme temperature variations
- Low voltage-temperature coefficient allows higher power output at high-temperature condition
- Outstanding low-light performance
Quality and Safety
- 25-year power output transferable warranty
- ISO 9001:2000 (Quality Managerment System) and ISO14001:2004(Environmental managerment System) certified factories manufacturing world class products
- Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in all kinds of complex configuration
- Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
- Innovative,environmentally packing method ensures modules arrived in perfect condition
Recommended Applications
- Residential roof top systems
- On-grid utility systems
- On-grid commercial systems
| Type | HNTH225-20P | HNTH230-20P | HNTH235-20P | HNTH240-20P | HNTH245-20P | HNTH250-20P |
| Maximum Power at STC(Pmax) | 225Wp | 230Wp | 235Wp | 240Wp | 245Wp | 250Wp |
| Open Circuit Voltage(Voc) | 36.7V | 36.8V | 36.V | 37V | 37.2V | 37.3V |
| Short Circuit Current(Isc) | 8.36A | 8.45A | 8.54A | 8.62A | 8.69A | 8.78A |
| Optimum Operating Voltage(Vmp) | 29.3V | 29.5V | 29.6V | 29.8V | 30V | 30.1V |
| Optimum Operating Current(Imp) | 7.68A | 7.8A | 7.94A | 8.06A |
8.17A | 8.31A |
| Temperature range | -40°C to +90°C | -40°C to +90°C | -40°C to +90°C | -40°C to +90°C | -40°C to+ 90°C | -40°C to +90°C |
| Maximum system voltage | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
| Maximum Series Fuse Rating | 15A | 15A | 15A | 15A | 15A | 15A |
| Power Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
Mechanical Characteristics
| Solar Cell | Monocrystalline solar cells (156mm x 156mm) |
| No. of cells | 6x10 pieces |
| Dimension | 1640x990mm (LxW) |
| Front glass | White toughened safety glass, 3.2 mm |
| Frame | Anodised aluminium profile |
| Junction box | with 6 bypass diodes |
| Cable | length 900mm, 1x4mm2 |
| Cell encapsulation | EVA(Ethylene-Vinyl-Acetate) |
| Back | composite film |
| Maximum surface load capacity | tested up to 2,400 Pa according to IEC 61215(advanced test) |
| Hail | Hail maximum diameter of 25mm with impact speed of 23m/s |
Temperature Coefficients
| Nominal Operating Cell Temperature(NOCT) | 45°C±2°C |
| Voltage temperature coefficients | -0.37%/K |
| Current temperature coefficients | +0.03%/K |
| Power temperature coefficients | -0.52%/K |
