Specifications
PV Module PV cell solar cellCE Certification has approved
high quality with reasonable price
10years guarantee
energy saver

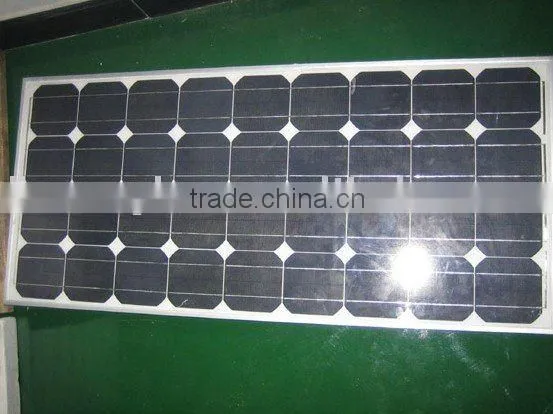

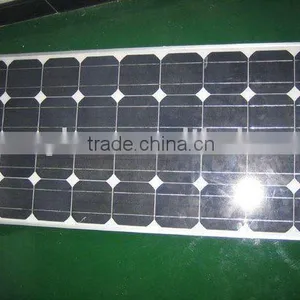

Solar module / Solar panel / PV panel / PV cell (125 series)
Product Description
Solar module / Solar panel / PV panel / PV cell (125 series) From 3.8w to 220W. all kinds of OEM offerd
FEATURES
- Long Service Life
- High Efficiency Solar Cells
- Special Aluminum Frame Design
- High Transmission,Low Iron Tempered Glass
- Advanced Cell Encapsulation
APPLICATIONS
- Solar power stations
- Rural electrification, Small home power systems
- Power supply for traffic, security, gas industry
- 12V and 24V battery charging system
- Other industrial and commercial applications
ITEM NO |
HNTH80/18V |
Material |
Monocrystalline Silicon |
Maximum power (Wp) |
80wp |
Maximum power voltage (V) |
17.64V |
Maximum power current (A) |
4.54V |
Open circuit voltage (V) |
21.6V |
Short circuit current (A) |
5A |
Number of cells (Pcs) |
36 |
Size of module (mm) |
1197*542*35 |
Brand Name of Solar Cells |
Tonghua |
Maximum system voltage (V) |
715V |
Temperature coefficients of Isc (%) |
(0.065±0.015)%/°C |
Temperature coefficients of Voc (%) |
-(2.23±0.1)mv/ °C |
Temperature coefficients of Pm (%) |
-(0.5±0.05)%/ °C |
Temperature coefficients of Im (%) |
+0.1/ °C |
Temperature coefficients of Vm (%) |
-0.38/ °C |
Temperature Range |
-40°C~+85°C |
Tolerance Wattage (e.g. ±5%) |
±5% |
Surface Maximum Load Capacity |
60m/s(200kg/sq.m) |
Allowable Hail Load |
steel ball fall down from 1m height |
Weight per piece (kg) |
7.8 |
Junction Box Type |
GY-BOX-5C( TUV ) |
Length of Cables (mm) |
900mm |
Cell Efficiency (%) |
>15% |
Module Efficiency (%) |
>14% |
Output tolerance (%) |
±3% |
Frame (Material, Corners, etc.) |
Aluminum |
Standard Test Conditions |
AM1.5 1000W/m2 25°C |
Warranty |
2 years product warranty and 20 years 80% of power |
FF (%) |
70% |
Packing |
5PCS/CTN |
