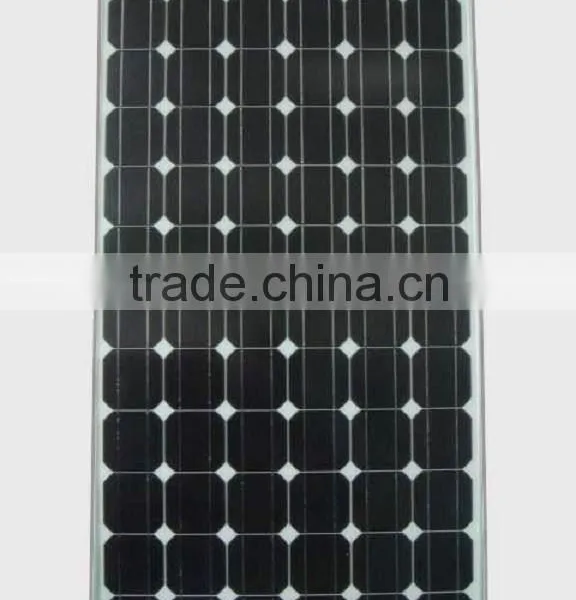

225w-300wSolar Panel

225w-300wSolar Panel thumbnail-1
225w-300wSolar Panel photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TONEHUA
Model Number:
TH-SP004
Contact Supplier Request Quote Chat Now
Haining Tonghua Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo or as the request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TONEHUA
Model Number TH-SP004
Material Monocrystalline Silicon
Size 1956*990*50mm
Number of Cells 6*12 series connected; Mono (156*156)
Max. Power 300W

Specifications

Monocrystal Solar Panel
1 `Long Service Life
`2 High Efficiency Solar Cells
`3 Special Aluminum Frame Design

Monocrystal Solar Panel
Product Description

290W Solar Module/Solar Panel/PV Module

TH-SP004-290(S)
Packing: 2 PCS in a carton and 20 cartons in a pallet
Warranty: 3 years products warranty. The output power is not less than 90% in 10 years and is not less than 80% in 20 years.

TH-SP004-255-300(S)
Specifications
  Model TH-SP004- TH-SP004- TH-SP004- TH-SP004- TH-SP004- TH-SP004- TH-SP004- TH-SP004- TH-SP004- TH-SP004-
Maximum Power       (Wp) 255 260 265 270 275 280 285 290 295 300
Open circuit voltage    (Voc) 43.5  43.7  43.8  43.9  44.1  44.2  44.4  44.5  44.6  44.8
Short circuit current     (Isc) 8.16  8.23  8.31  8.39  8.46  8.53  8.59  8.68  8.73  8.80
Maximum power voltage (Vm) 34.7  34.8  35.0  35.1  35.3  35.5  35.7  35.8  35.9  36.1
Maximum power current (Im) 7.35  7.48  7.58  7.70 7.8  7.89  7.99  8.11  8.22  8.32
Cell efficiency (%) 14.75% 15% 15.75% 16.0% 16.25% 16.5% 16.75% 17.0% 17.0% 17.5%
Max system voltage (V DC) 1000V DC
Temperature coefficient of Vm -0.37%/K
Temperature coefficient of Im 0.03%/K
Temperature coefficient of Wp -0.52%/K
Maximum Series Fuse Rating  15A
Solar cell  6*12 series connected; Mono (156*156)
Junction box  IP65, 1000V DC, TUV certificated, 6pcs bypass diodes
Cable type Cable cross section size 4mm2, TUV certificated, 900mm length;
Encapsulation Low iron tempered glass, 3.2mm thickness, light transmission above 91%, TPT and fast cure EVA
Frame Clear anodized aluminum alloy, 50mm thickness, silver
Dimension(L*W*H) 1956*990*50mm
Weight 23.7kg
Heavy mechanical load 2400Pa; IEC61215
Hail test Diameter 25mm ice ball; shoot the solar panel 11 points at 23M/S speed
Operating temperature -40 to +85 degree
 Standard Testing Condition: 1000W/m2, Cell temperature 25 degree, AM=1.5
 Power tolerance:±3%
