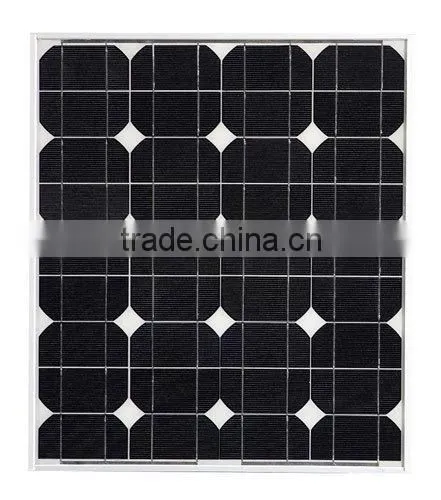

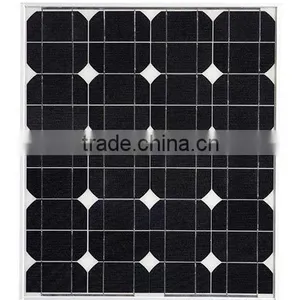

40W Solar Panel
Product Description
Model(SL40CE-18M)Specifications
Maximum Power(W): 40W
Optimum Power Voltage(Vmp): 16.66V
Optimum Operatige Current(Imp): 2.70A
Open Circuit Voltage(Voc): 21.81V
Short Circuit Current(Isc): 2.89A
Solar Cell: 125*62.5mm Mono
Nmber of Cell(PCS) : 4*9
Brand Name of Solar Cells: Jetion Cell
Size of Module(mm) : 668*546*35
Front Glass Thikness(mm): 3.2
Tolerance Wattage(e. G. +/-5%): +/-5%
Surface Maximum Load Capacity: 2400Pa
Allowable Hail Load: 23m/s, 7.53g
Weight Per Piece(KG): 4.3
Junction Box Type: Pass the TUV Certificate
Bypass Diode Rating(A): 12
Caple & Connector Type: Pass the TUV Certificate
Cell Efficiency (%): 15.0%
Module Efficiency (%): 12.53%
Frame(Material Corners, etc. ): 35#
Backing (Brand Type): TPT
Warranty: 90% of 10 years, 80% of 25 years.
FF (%): 70-76%
Packing: Wooden box
1*20': 48Pallets / 1544PCS
1*40'STD: 112 Pallets / 3584PCS
