Help Center210W Solar Module
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TONGHUA
Model Number:
TH210W Solar Panel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo or as the request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
TONGHUA
Model Number
TH210W Solar Panel
Material
Polycrystalline Silicon
Size
1650*9928*50
Number of Cells
60
Max. Power
210W
Specifications
Solar Module1. A-class cells guarantee maximum power output;
2. Anti-reflecting coating and high transmission tempered glass

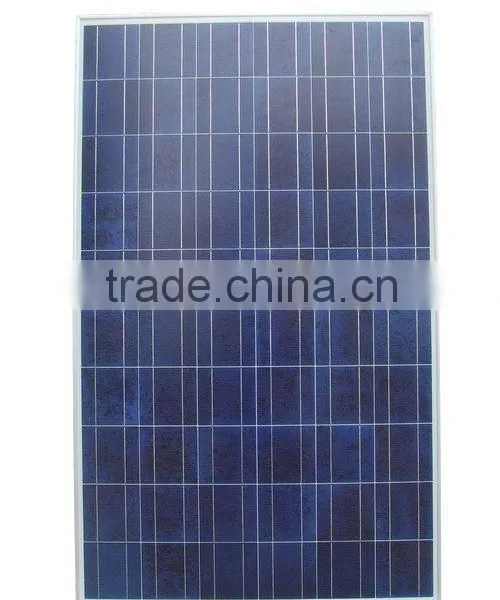

210W Solar Module/Solar Panel/PV Module
Product Description
210W Poly-Crystalline silicon solar panel;
Certification: CE, IEC61215, TUV, RoHS.
1. A-class cells guarantee maximum power output;
2. Anti-reflecting coating and high transmission tempered glass;
3. Imported EVA and TPT sealed to prevent destroying and water;
4. No screw & corner connection, with 6holes easy to install;
5. Multi-functiion TUV junction box with bypass diode.
| ELECTRIC CHARACTERISTICS | ||
| Model | TH-210P | |
| Open circuit voltage(Voc) | 36.6V | |
| Short circuit current(Isc) | 7.72A | |
| Optimum operating voltage(Vpm) | 29.6V | |
| Optimum operating current(Ipm) | 7.10A | |
| Maximum power at STC(Pm) | 210Wp | |
| Cell | Poly-Crystalline silicon solar cells;156mm×156mm | |
| No.of cells and connections | 60cells in a 6×10 connectedin series | |
| Power tolerance | ±3% | |
| Weight | 19.5kg | |
| Dimension | 1650×992×50 mm | |
| Series fuse rating | 20A | |
| Length of Cables | 900mm | |
| Frame | Clear anodized aluminum alloy frame; Color: silver | |
| Application | DC 24V system | |
| Limits: | Operating temperature: -40 ºC ~ +85 ºC ; Maximum System voltage:1000VDC | |
| Packing | 2pcs/ctn | |
| Loading Quantity | 36pcs/pallet, 504 pcs/40ft; 252pcs/20ft | |
| Hailstone impact | 25mm ( 1 inch) at 23 m/s (52mph) | |
| STC: Irradiance 1000W/m2 , Temperature 25ºC, AM=1.5 | ||
| Thermal Characteristics | ||
| NOCT | 48 ºC ±2ºC | |
| the temperature coefficient of Isc | 0.017%/ ºC | |
| the temperature coefficient of Voc | - 0.34%/ ºC | |
| the temperature coefficient of Im | +0.1%/ ºC | |
| the temperature coefficient of Vm | - 0.38%/ ºC | |
| the temperature coefficient of Pmax | - 0.48%/ ºC | |
| Qualification Test Parameters | ||
| temperature cycling range | - 40 ºC ~85ºC | |
| humidity freeze, damp heat | 85%RH | |
| static load front and back (e.g. wind) | 2400 pa (50psf) | |
| front loading (e.g. snow) | 5400 pa (113psf) | |
| hailstone impact | m ( 1 inch) at 23 m/s (52mph) | |
