Help Center70W Solar Panel
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TONGHUA
Model Number:
THSP50W
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo or as the request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
TONGHUA
Model Number
THSP50W
Material
Polycrystalline Silicon
Size
1000*515*35
Number of Cells
36
Max. Power
70W
Specifications
Solar Panel/Solar ModuleWith high efficiency(14-18%), best price, well after-sale service

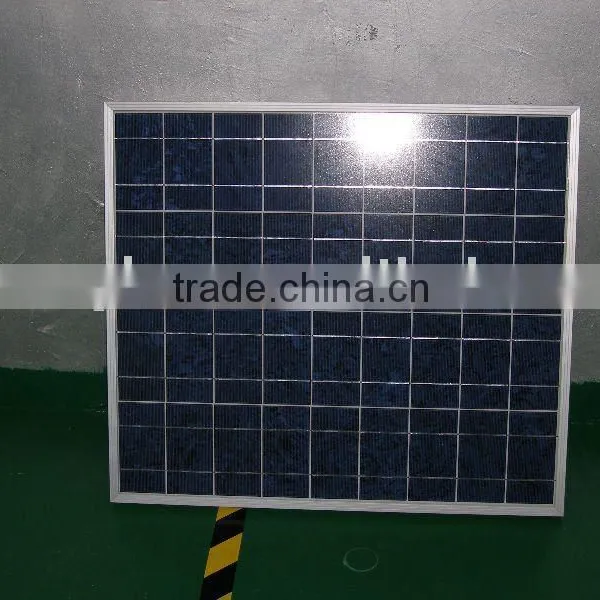

70W Solar Panel/Solar Module /PV energy System
The polycrystalline silicon and monocrystalline silicon solar panels producced by our company. With EVA high-temperature laminated film on the rear surface, reiforced glass packing on the surface, alumimun alloy frame around it, cathode oxidation is adopted in treatment of the surface, corrosion-resistance frame, water-proof junction box, and overall exquisite technology. The system is durable, and has a life of 25 years.
Intemational authoritative cetification: ISO, IEC, CE, 3C etc.
| Polycrystalline Silicon Solar Cell | |
| TH50W | |
| Cell | Polycrystalline Silicon Solar Cell |
| Size of Cell | 156 |
| No.of Cell | 36 (3*12) |
| Size of Module (mm) | 1000*515*35 |
| Weight | 7Kg |
| Open Circuit Voltage (Voc) | 21.24V |
| Maximum power Voltage (Vmp) | 18V |
| Short Circuit Current (Isc) | 3.05A |
| Maximum power Current (Imp) | 2.78A |
| Maximum Power (Pm) | 50W |
| NOCT | 48±2degree |
| Current Temperature Coefficient (%/K) | 0.055±0.01 |
| Voltage Temperature Coefficient (Mv/K) | -(150±10) |
| Power Temperature Coefficient (%/K) | -(0.47±0.05) |
| Operating Temperature Coefficient | -40 to +85degree |
| Maximum System Voltage | 750V DC |
