Home > Electrical & Electronics > Sensor > Pressure Sensor > High Quality Load Cell

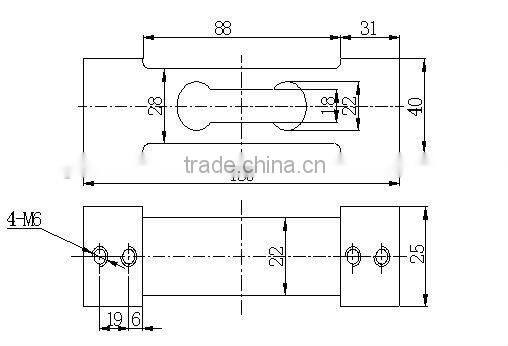

High Quality Load Cell

Name: High Quality Load Cell
Brand: GOLDSHINE
SKU: 128763991
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS309

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS309

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Product Characteristics:

Electronic scale load cell GS309 Load cells are available for manifold accurate measurement in the capacity 50kg Alloy steel , nickel plated, potted by adhesive inside, oil-proof, waterproof and anti-corrosive gas and medium, suitable for multiform environments. Suitable for electronic scale, electronic platform scale, belt scale, weighing, weighing systems, bench scale, weighing scale, portable beam wheel chair scales, physician scale, portable livestock scale, digital platform balances, digital weight balance,digital scale balance,digital precision balance,digital counting balance,digital electronic balance and other electronic weighing devices.

Technical parameter:

Rated Load:	50kg
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10°C
Tc Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	351±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation Vol.:	10~12V DC
Maximum Excitation Vol.:	15V DC
Sealing Class:	IP68
Load Cell Block Material:	Alloy Steel, Stainless Steel
Cable:	Length=L:3m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
