Home > Electrical & Electronics > Sensor > Pressure Sensor > Electronic Scale Part Load Cell

Electronic Scale Part Load Cell

Name: Electronic Scale Part Load Cell
Brand: GOLDSHINE
SKU: 128763863
Availability: InStock

Electronic Scale Part Load Cell thumbnail-1

US$ 30 - 35 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS329

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS329

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Product Characteristics:

GS329 Alloy steel and stainless steel;Colorless anodized; Hermetically sealed with glue to IP67~68 Application Electronic counting scales, platform scales etc.

Technical Parameter:

Capacity:	60Kg~350Kg

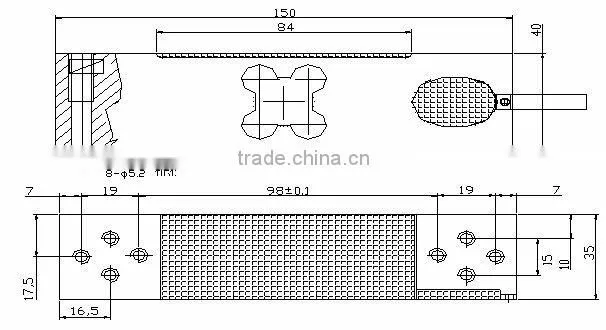

Outline size:	35×40×150
Rated output:	2.0mv/V±5%
Zero balance:	±2%R.O.
Non-linearity:	±0.015%R.O.
Hysteresis, Non-Repeatability:	±0.02%R.O.
Creep(30 minute):	±0.02%R.O.
Tem. Compensated For Output:	±0.03%R.O./10°C
Tem. Compensated For Zero:	±0.03%R.O./10°C
Input resistance:	405±10Ω
Output resistance:	350±3Ω
Insulation Resistance:	≥5000MΩ
Temperature Compensated:	-10to+40°C
Operating Temperature Range:	-20to+60°C
Excitation, recommended:	5~12VDC
Excitation, maximum:	18VDC
Safe overload:	150%.R.C
Cable, and length:	1.5m(φ5mm)
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
