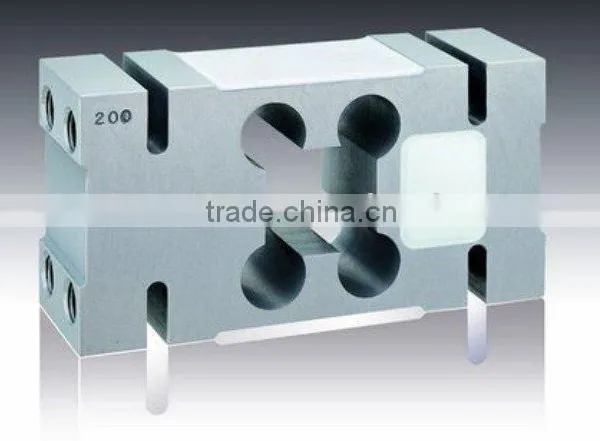

Help CenterWeighing Scale Sensor
US$ 12 - 98
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
GS330
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
GOLDSHINE
Model Number
GS330
Usage
Pressure Sensor
Theory
Resistance Sensor
Output
Other, Analog sensor/Digital sensor
Technical Parameter:

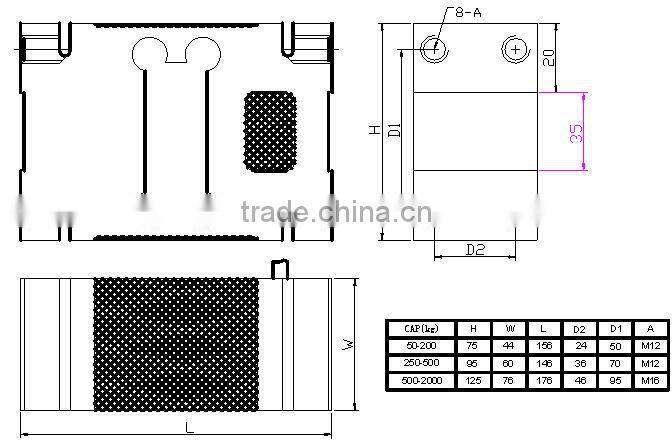

Capacity |
50Kg~2000kg |
Outline size |
95×60×146 |
Rated output |
2.0mv/V±5% |
Zero balance |
±2%.F.S |
Non-linearity |
±0.02%R.O. |
Hysteresis,Non-Repeatability |
±0.02%R.O. |
Creep(5 minute) |
±0.02%R.O. |
Temperature Compensated For Output |
±0.03%R.O./10°C |
Temperature Compensated For Zero |
±0.03%R.O./10°C |
Input resistance |
405±10Ω |
Output resistance |
350±3Ω |
Insulation Resistance |
≥5000MΩ |
Temperature Compensated |
-10to+40°C |
Operating Temperature Range |
-20to+60°C |
Excitation,recommended |
(5~12)VDC |
Excitation,maximum |
18VDC |
Safe overload |
150%.R.C |
Cable,and length |
1.5m(φ5mm) |
Mode Of Connection: |
Red(Input+),Black(Input-),Green(Output+),White(Output-) |
