OIML Approved Single Point Sensor

Name: OIML Approved Single Point Sensor
Brand: GOLDSHINE
SKU: 128763837
Availability: InStock

Ningbo Goldshine Electronic Co., Ltd.

OIML Approved Single Point Sensor thumbnail-1

OIML Approved Single Point Sensor photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS332

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS332

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

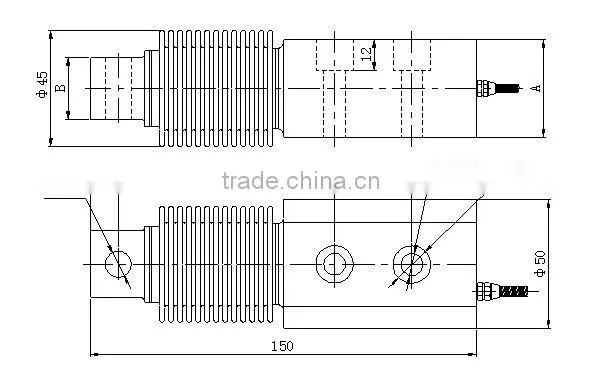

Unit: mm

Cap/Size	A	B
125-250kg	38	24
500kg	42	30

Product Characteristics:

Single point sensor GS332 series load cell are available in the capacities 10~500kg. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer alloy steel or total stainless steel construction, below hermetic sealing, oil-proof, waterproof and anti-corrosion making them suitable for all kinds of environment. Single point with bellow, easy installation, flexible application and they are suitable for belt scale, hopper scale and other electronic weighing devices,mechanical bench scales, body scales, electronic cattle scales.

Technical Parameter:

Rated Load:	125/250/500kg
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.03% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	351±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-10~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load::	300%F.S
Recommend Excitation Vol.:	10~12V DC
Maximum Excitation Vol.:	15V DC
Sealing Class:	IP68
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L:3m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
