Home > Electrical & Electronics > Sensor > Pressure Sensor > Low Profile Bending Beam Load Cell

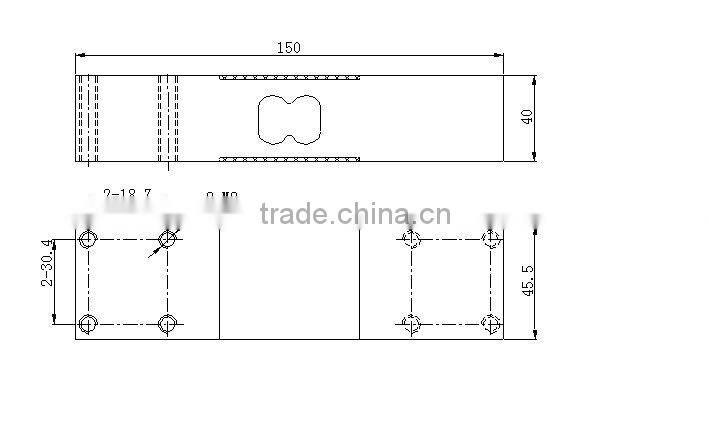

Low Profile Bending Beam Load Cell

Name: Low Profile Bending Beam Load Cell
Brand: GOLDSHINE
SKU: 128763731
Availability: InStock

Ningbo Goldshine Electronic Co., Ltd.

US$ 12 - 36 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS350

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS350

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Product Characteristics:

Single point load cells GS350 is low based low profile bending beam load cell and is ideal for precision single point platform scale application. we can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. It is designed for eccentric load sensitivity. It application in medium size platform scales, bag weighing, hopper weigher, weighing bench scale, mechanical bench scales, waterproof scale, washdown bench scale ,body scales, digital platform balances, digital weight balance,digital scale balance.

Technical parameter:

Rated Load:	50~500kg
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.05% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10°C
Tc Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	351±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation Vol.:	10~12V DC
Maximum Excitation Vol.:	15V DC
Sealing Class:	IP65
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L:3m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
