Home > Electrical & Electronics > Sensor > Pressure Sensor > Platform Scale Load Cell

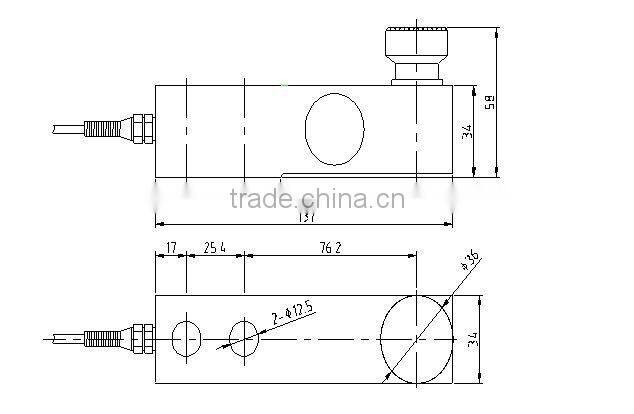

Platform Scale Load Cell

Name: Platform Scale Load Cell
Brand: GOLDSHINE
SKU: 128763759
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS343

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS343

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Product Characteristics:

Shear beam load cell GS343 series we can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. One end of the load cell is fixed, another loaded and rocker pressure head transfers force. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale, floor scale ,electronic floor scale ,low profile floor scale ,digital floor scale, floor weighing scale, floor balance scale, frameless floor ,frame type floor scale, explosion-proof floor scale, moveable floor scale, cattle scales, weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales and other electronic weighing devices.

Technical Parameter:

Rated Load:	0.5/1/2/2.5t
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L:3m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
