Home > Electrical & Electronics > Sensor > Pressure Sensor > Scale Load Cell

Scale Load Cell

Name: Scale Load Cell
Brand: GOLDSHINE
SKU: 128763737
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS348-with foot

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS348-with foot

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

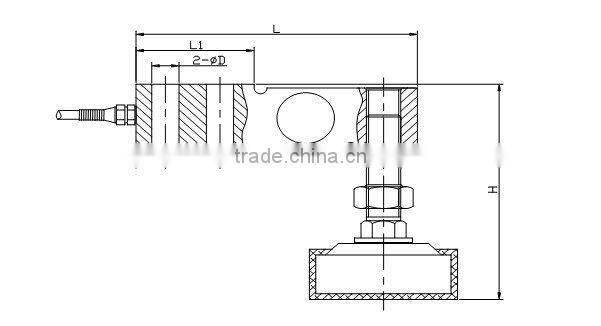

Unit: mm

Cap.Size	L	L1	L2	L3	L4	ΦD	H
0.1~0.5t	130	54	12.7	25.4	76.2	13.5	74~84
1~3t	130	54	12.7	25.4	76.2	13.5	74~84
3~5t	171.5	77	19.1	38.1	95.3	20	82~92
7.5~10t	223	100	25	50.8	120	25	92~102

Product Characteristics:

Shear beam load cells GS348-With foot series we can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale, digital floor scale, floor weighing scale, floor balance scale, frameless floor ,frame type floor scale, explosion-proof floor scale, moveable floor scale, cattle scales, pit scale, track scale, digital platform balances, digital weight balance, digital scale balance,digital precision balance,digital counting balance,digital electronic balance,digital body balance, platform balances and other electronic weighing devices.

Technical Parameter:

Rated Load:	0.1/0.2/0.3/0.5/1/2/3/5/7.5/10t
Sensitivity:	(2.0±0.1%) mV/V ,(3.0±0.1%) mV/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10°C
Tc Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation Vol.:	10~12V DC
Maximum Excitation Vol.:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel/ Stainless Steel
Cable:	Length=L:6m
Citation	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)-)
