Home > Electrical & Electronics > Sensor > Pressure Sensor > Electronic Shear Beam Sensor

Electronic Shear Beam Sensor

Name: Electronic Shear Beam Sensor
Brand: GOLDSHINE
SKU: 128763723
Availability: InStock

Electronic Shear Beam Sensor thumbnail-1

US$ 32 - 168 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS351

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS351

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

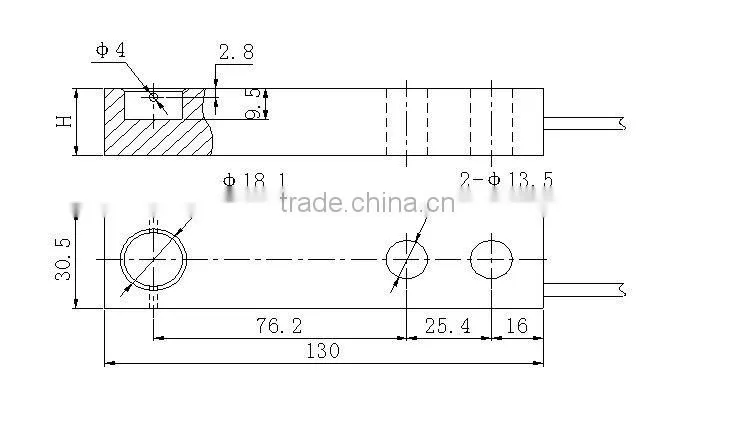

Unit:mm

Cap.Size	H
500kg	19
1t	19
2t	28

Description:

Shear Beam Load Cell GS351 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications. It has high immunity to shock or side loading, and is available in 2mV/V sensitivity Sealed to IP67 as standard the GS351 is ideally suited for harsh industrial applications where performance and durability are paramount. The extremely low profile makes this load cell ideal for today’s modern low profile industrial platforms. Shear beam load cell GS351 applications for low profile platforms, pallet truck weighing, tank and silo weighing and food industry platforms

Technical Parameter:

Rated Load:	0.5/1/2t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.05% F.S
Creep Error(30min):	±0.05% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L: 3m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
