With High Precision Share Beam Modules /Hopper Scale Load Cell/Single Point Load Cell for Tank Scale GS340-M

With High Precision Share Beam Modules /Hopper Scale Load Cell/Single Point Load Cell for Tank Scale GS340-M thumbnail-1
With High Precision Share Beam Modules /Hopper Scale Load Cell/Single Point Load Cell for Tank Scale GS340-M photo-1
US$ 20 - 300 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Goldshine
Model Number:
GS340-M
Contact Supplier Request Quote Chat Now
Ningbo Goldshine Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Goldshine
Model Number GS340-M
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor

With high precision Share Beam Modules /Hopper Scale Load Cell/Single Point Load Cell for Tank Scale GS340-M

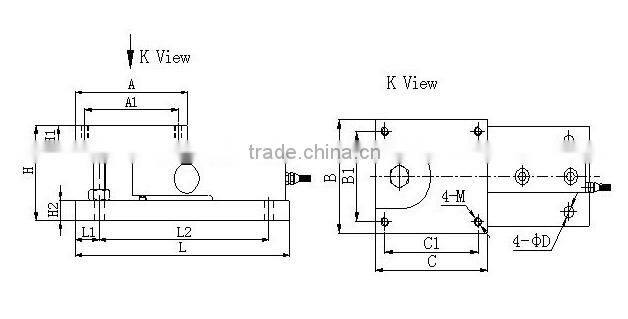

Unit: mm

Cap/Size

L

L1

L2

A

B

C

D

A1

B1

C1

H

H1

H2

M

0.5~3t

286

32

226

150

128

112

13

124

102

80

102

28

23

M12

5~7.5t

318

32

257

178

152

152

17

146

120

102

130

38

30

M16

10t

360

32

295

184

154

154

21

152

122

106

168

45

45

M20

15~25t

400

25

350

220

220

220

26

170

170

170

213

55

55

M24

With high precision Share Beam Modules /Hopper Scale Load Cell/Single Point Load Cell for Tank Scale GS340-MWith high precision Share Beam Modules /Hopper Scale Load Cell/Single Point Load Cell for Tank Scale GS340-M

Product Characteristics:

Shear beam load cell GS340-M series we can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices, truck scales, Weighing Scale, weighing equipment, weighing, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales

Technical Parameter:

Rated Load:

0.5/1/2/3/5/8/10/20/25t

Sensitivity:

(2.0±0.1%) mV/V

Combined Error:

±0.02% F.S

Creep Error(30min):

±0.02% F.S

Zero Balance:

±1% F.S

Temp. Effect On Zero:

±0.02% F.S/10°C

Temp. Effect On Span:

±0.02% F.S/10°C

Input Resistance:

385±5Ω

Output Resistance:

351±2Ω

Insulation Resistance:

≥5000MΩ

Operating Temperature Range:

-30~+70°C

Maximum Safe Over Load:

150%F.S

Ultimate Over Load:

250%F.S

Recommend Excitation Vol.:

10~12V DC

Maximum Excitation Voltage:

15V DC

Sealing Class:

IP67/IP68

Element Material:

Alloy Steel/ Stainless Steel

Cable:

Length=L:6m

Citation:

GB/T7551-2008/ OIML R60

Mode Of Connection:

Red(Input+),Black(Input-),Green(Output+),White(Output-)

With high precision Share Beam Modules /Hopper Scale Load Cell/Single Point Load Cell for Tank Scale GS340-M
