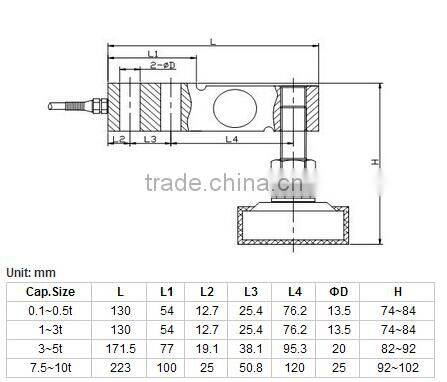

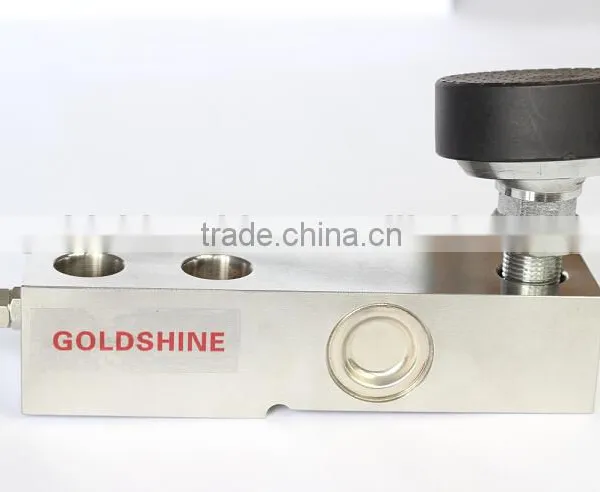

Help CenterDurable Single Point Shear Beam Load Cell With Foot GS348 With Foot (0.1-10ton)
Related Products
-
With High Precision OIML Approved Single Point Load Cell/GS332US$ 5 - 300MOQ: 50 Sets -
With High Precision Frequently-used Single Point Load Cell GS304US$ 20 - 500MOQ: 20 Pieces
-
Durable Weighing Scale Sensor /Electronic Strain Gauge Load Cell/stainless Steel Load Cell GS340US$ 10 - 200MOQ: 20 Pieces
-
With High Precision Single Point Load CellUS$ 35 - 460MOQ: 20 Pieces
-
With High Precision Single Point Load Cell/Platform Scale RC3 Load CellUS$ 18 - 131MOQ: 20 Pieces
Product Characteristics:
Shear beam load cells GS348-With foot series we can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale, digital floor scale, floor weighing scale, floor balance scale, frameless floor ,frame type floor scale, explosion-proof floor scale, moveable floor scale, cattle scales, pit scale, track scale, digital platform balances, digital weight balance, digital scale balance,digital precision balance,digital counting balance,digital electronic balance,digital body balance, platform balances and other electronic weighing devices.
Technical Parameter:
Rated Load: |
0.1/0.2/0.3/0.5/1/2/3/5/7.5/10t |
Sensitivity: |
(2.0±0.1%) mV/V ,(3.0±0.1%) mV/V |
Combined Error: |
±0.02% F.S |
Creep Error(30min): |
±0.02% F.S |
Zero Balance: |
±1% F.S |
Tco: |
±0.02% F.S/10°C |
Tc Span: |
±0.02% F.S/10°C |
Input Resistance: |
385±5Ω |
Output Resistance: |
352±2Ω |
Insulation Resistance: |
≥5000MΩ |
Operating Temp. Range: |
-30~+70°C |
Maximum Safe Over Load: |
150%F.S |
Ultimate Over Load: |
250%F.S |
Recommend Excitation Vol.: |
10~12V DC |
Maximum Excitation Vol.: |
15V DC |
Sealing Class: |
IP67/IP68 |
Element Material: |
Alloy Steel/ Stainless Steel |
Cable: |
Length=L:6m |
Citation |
GB/T7551-2008/ OIML R60 |
Mode Of Connection: |
Red(Input+),Black(Input-),Green(Output+),White(Output-)-) |
